PIR 360 Motion Sensor (Tuya Zigbee & Switch)
No.R1-PIR-TYZ/S1
SKU: 60.10.1117
Product Model: CTL-SEN-R1/1117
Detects human movement status

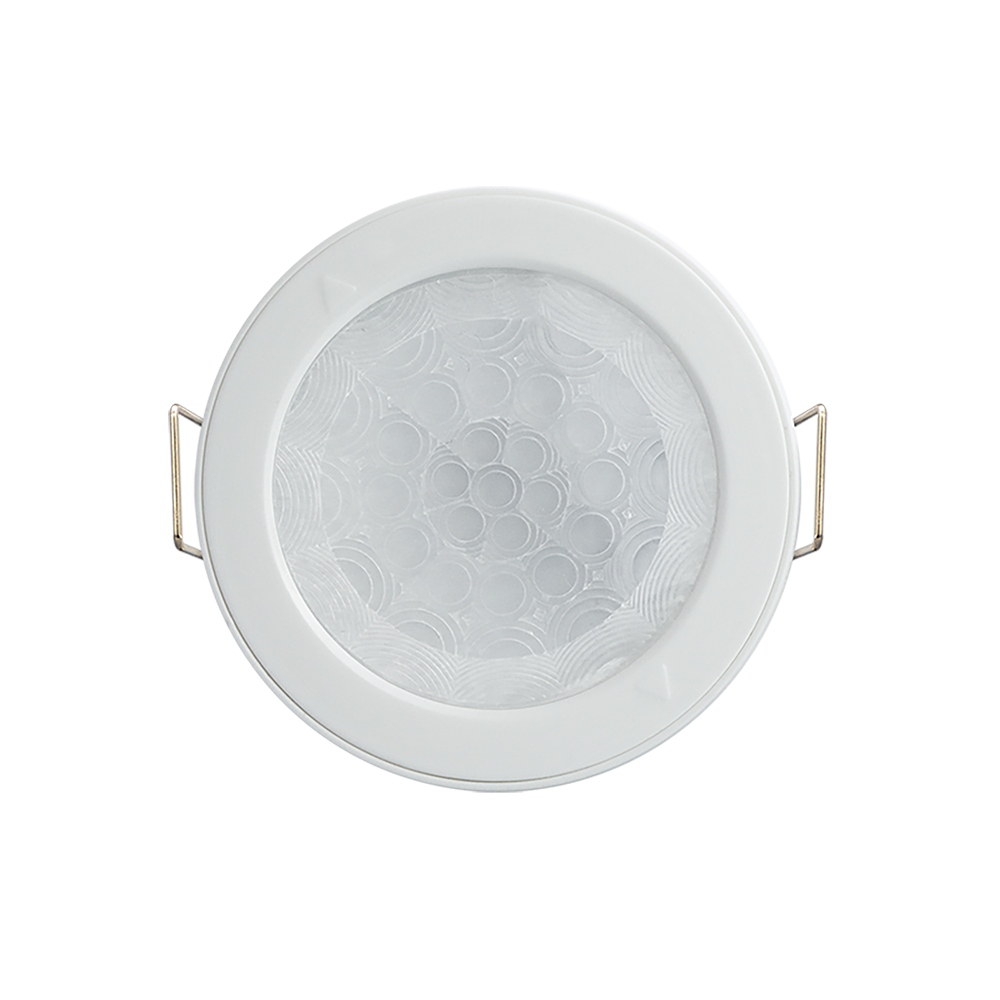

The sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing for dense coverage that detects human radiation motion. It has a built-in 0-32000 Lux digital illuminance counting chip, which can simultaneously detect ambient light.

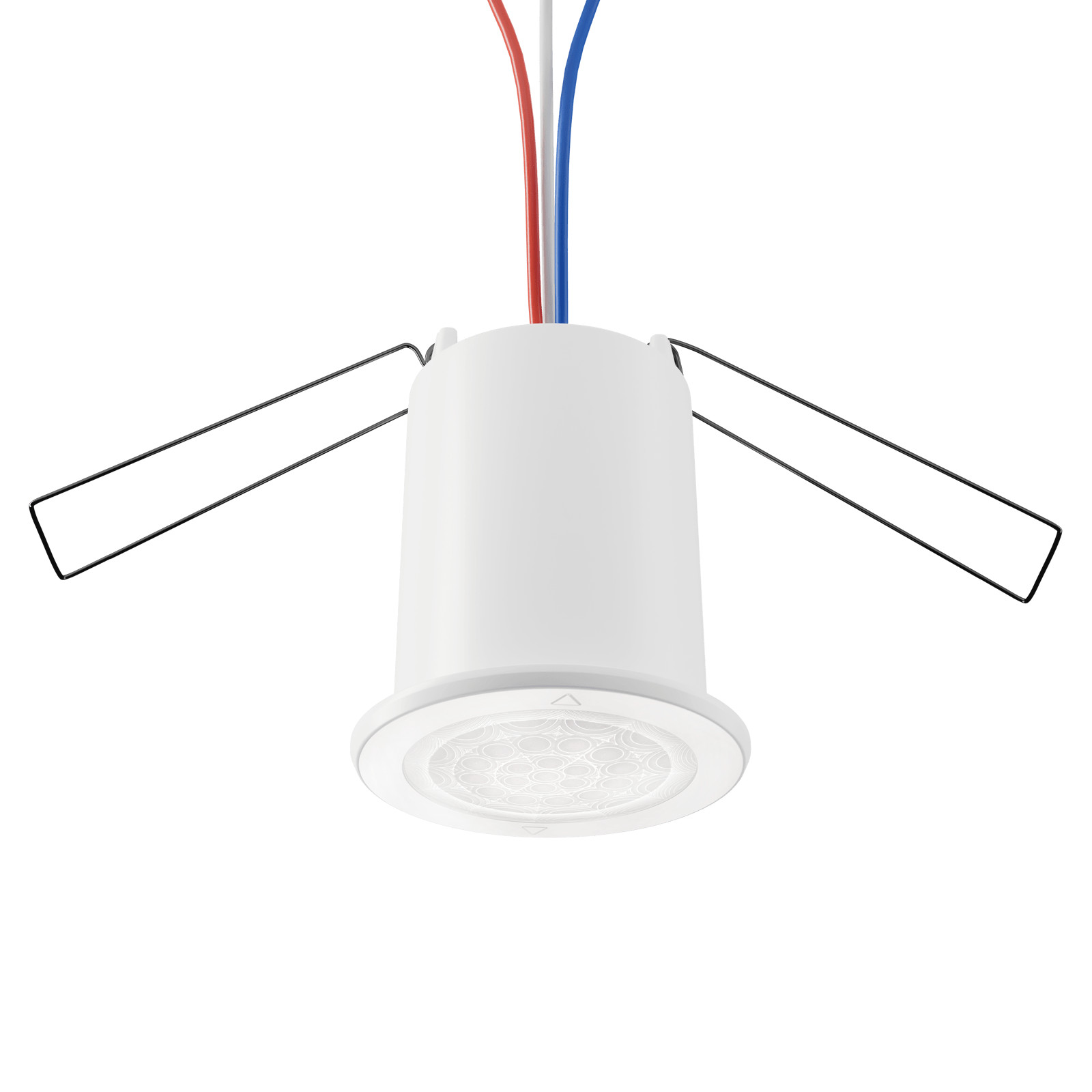

Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ6m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ42mm

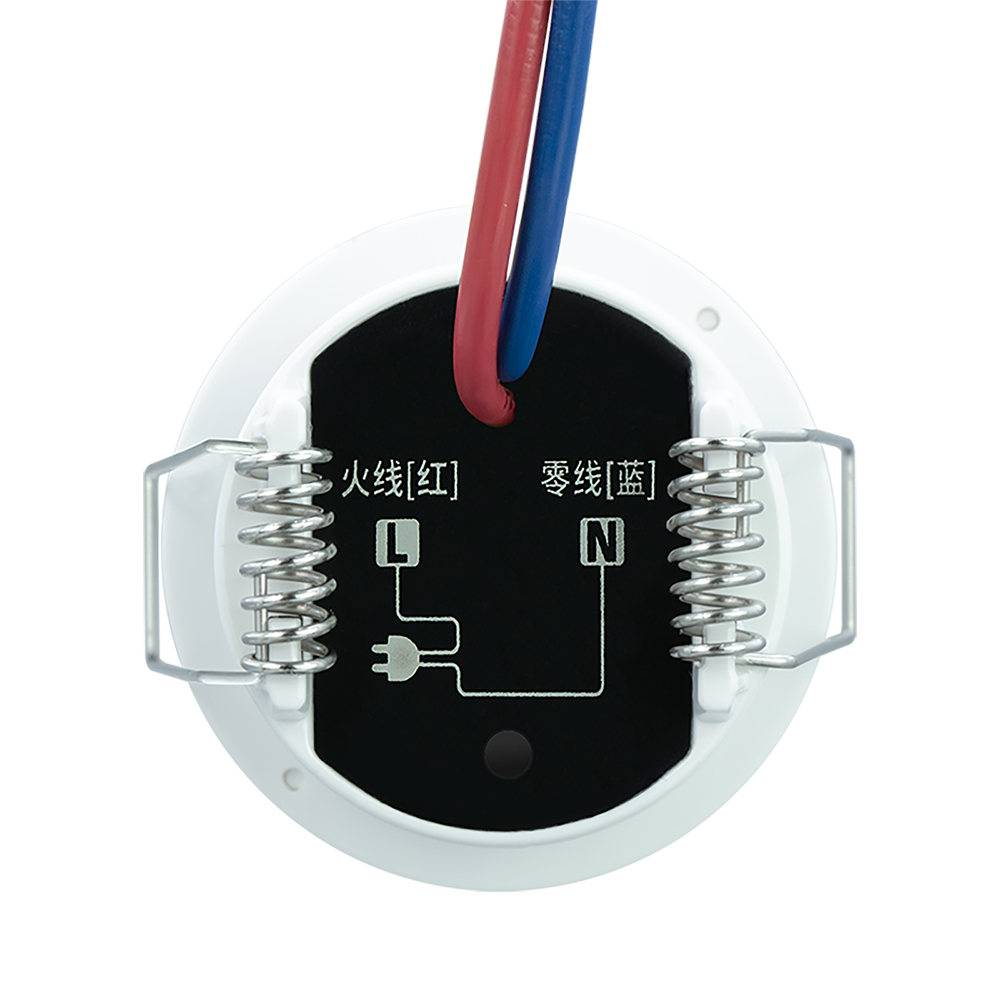

Power Input: AC100~240V
Output: 1 Channel Switch (300W)
Communication: Tuya-Zigbee
Detects human movement status
The sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing for dense coverage that detects human radiation motion. It has a built-in 0-32000 Lux digital illuminance counting chip, which can simultaneously detect ambient light.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ6m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ42mm
Power Input: AC100~240V
Output: 1 Channel Switch (300W)
Communication: Tuya-Zigbee
