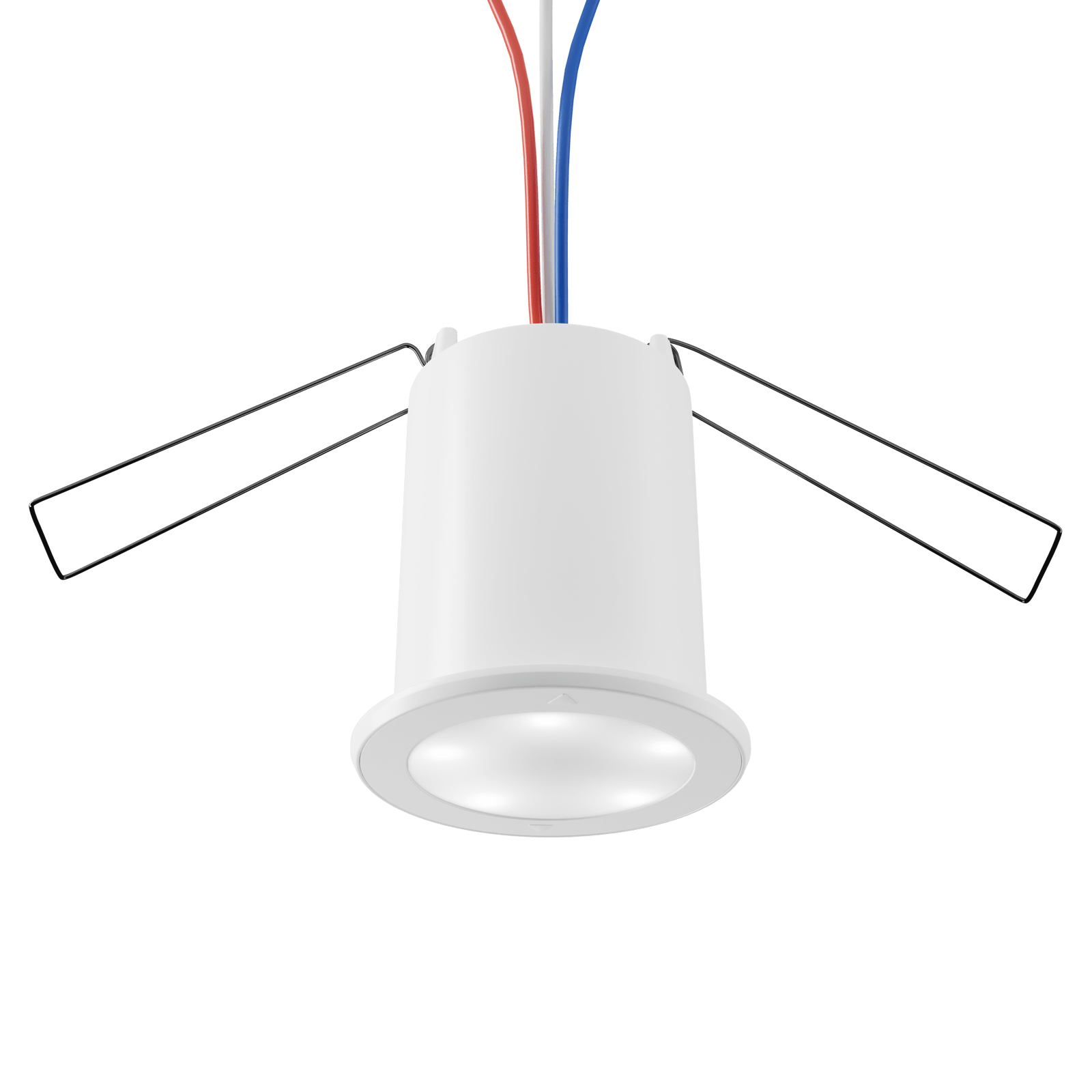

24G Radar Presence Sensor (Tuya WiFi & Switch)
No.R1-24G-TYW/S1
SKU: 60.10.2127
Product Model: CTL-SEN-R1/2127
Accurate detection of static and minor motion states
It is a millimeter-wave radar sensor capable of detecting human presence, equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol's exclusive algorithm to confirm human status by assessing breathing patterns. It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ7m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ42mm
Power Input: AC100~240V
Output: 1 Channel Switch (300W)
Communication: Tuya-WiFi
Accurate detection of static and minor motion states
It is a millimeter-wave radar sensor capable of detecting human presence, equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol's exclusive algorithm to confirm human status by assessing breathing patterns. It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ7m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ42mm
Power Input: AC100~240V
Output: 1 Channel Switch (300W)
Communication: Tuya-WiFi
