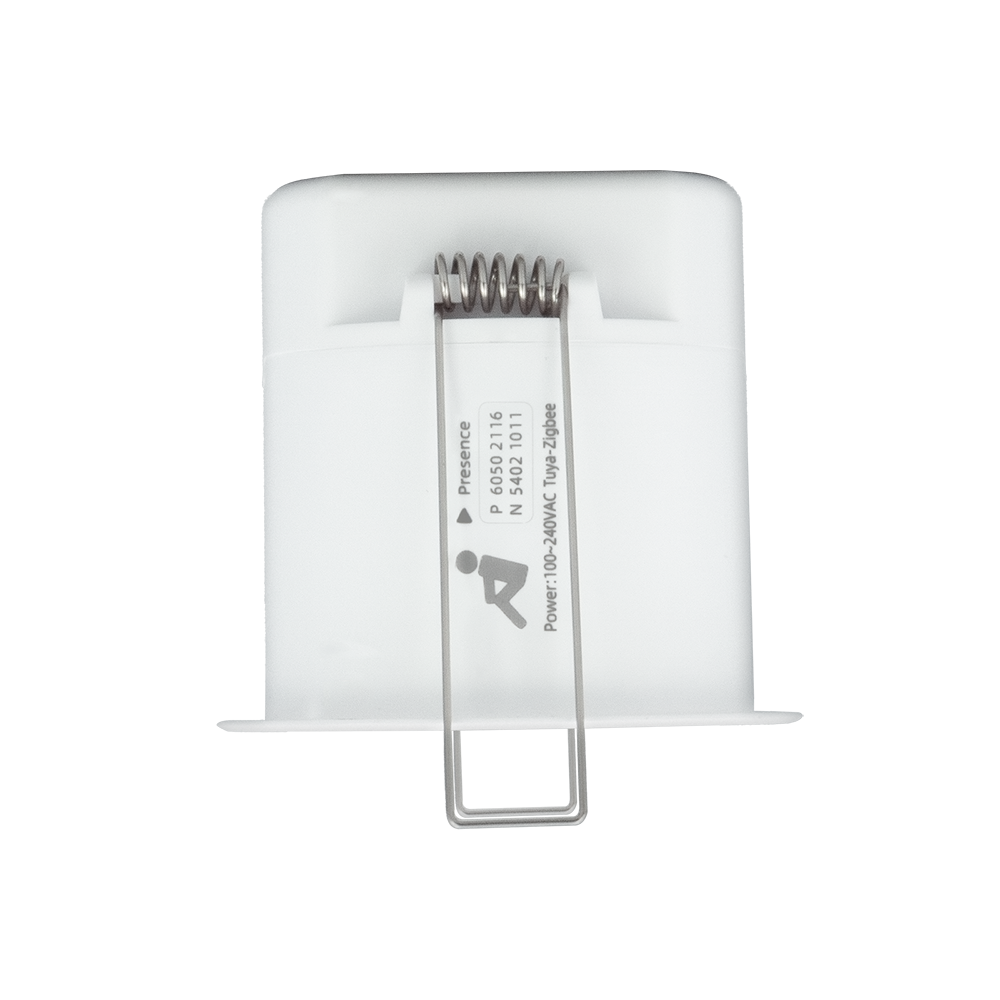

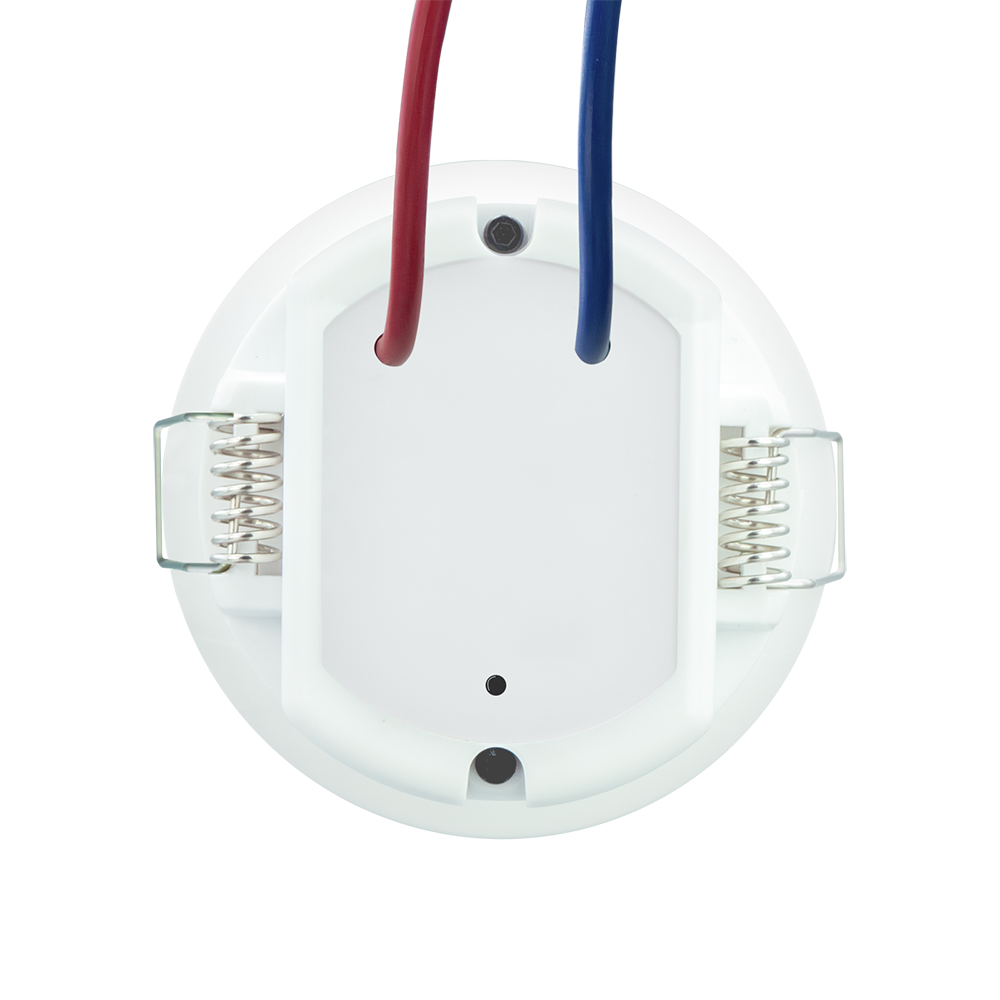

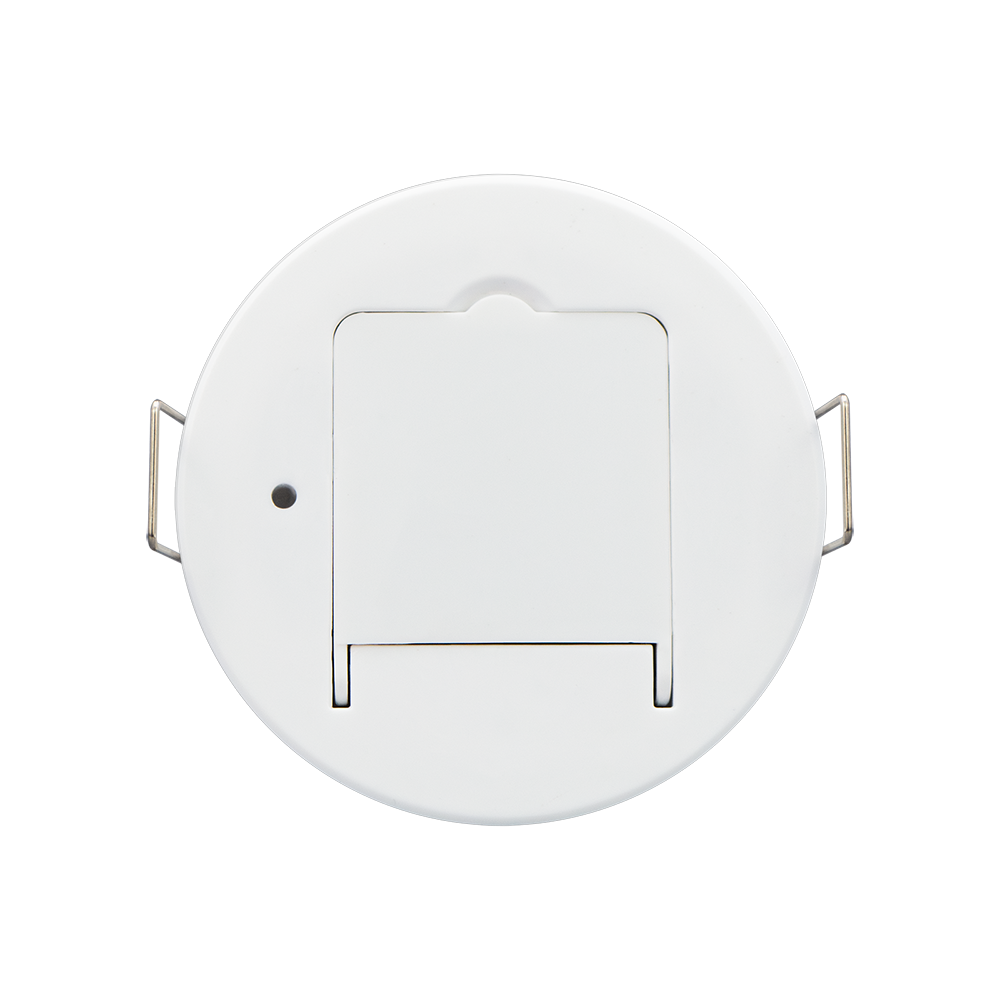

24G Radar Presence Sensor Direction Adjustable (Tuya Zigbee)
No.R5-24G-TYZ(ADJ)
SKU: 60.50.2116
Product Model: CTL-SEN-R5/2116

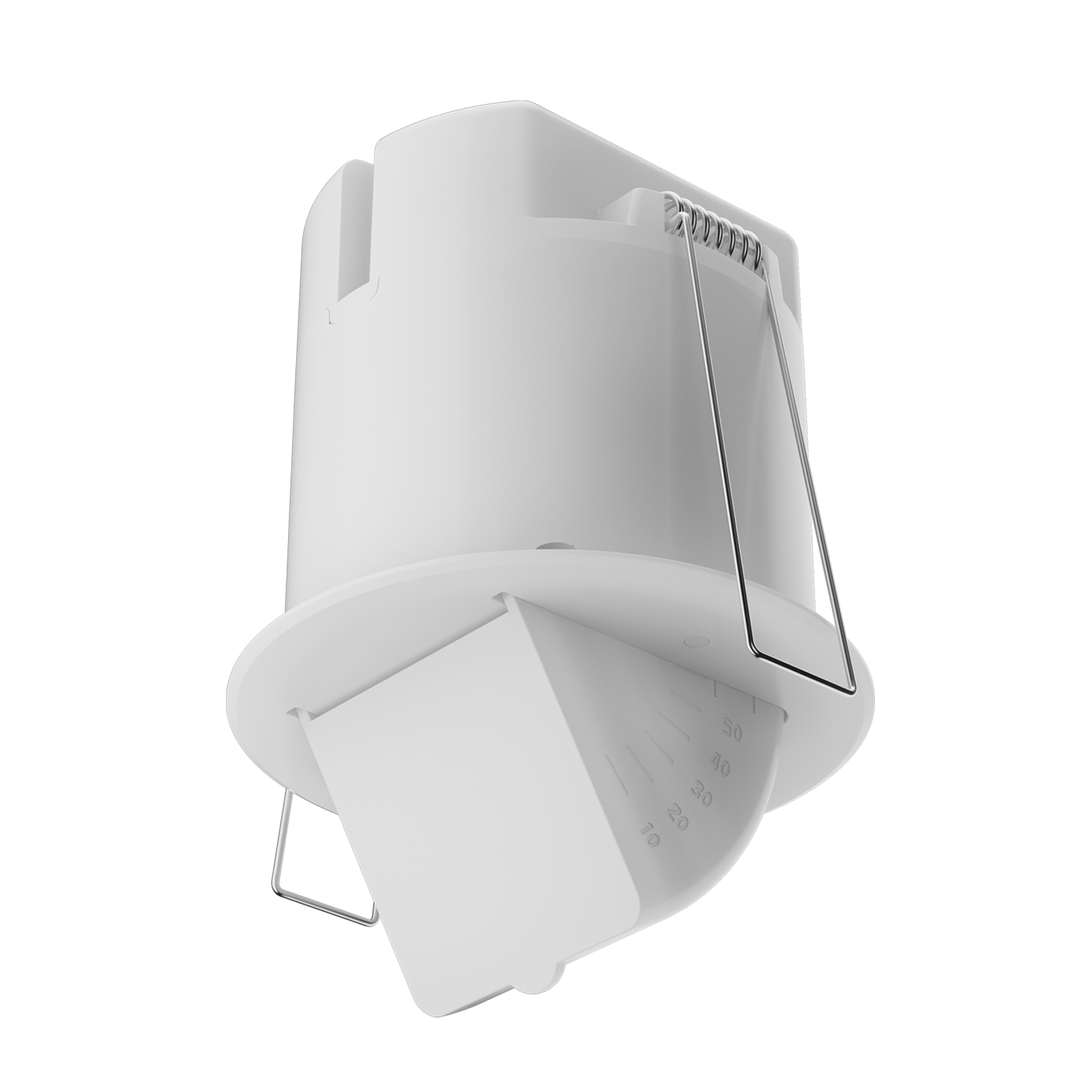

It is a millimeter-wave radar sensor capable of detecting human presence. The detection direction can be adjusted from 0~60 degrees.Equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol algorithm to confirm human presence by assessing breathing patterns. It has a built-in 0~32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range:
0° No Corner Folding, φ2m;
30° Folded Corner, 5*3.6m;
60° Folded Corner, 8*8m(at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ55mm
Power Input: AC100~240V
Communication: Tuya-Zigbee
It is a millimeter-wave radar sensor capable of detecting human presence. The detection direction can be adjusted from 0~60 degrees.Equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol algorithm to confirm human presence by assessing breathing patterns. It has a built-in 0~32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range:
0° No Corner Folding, φ2m;
30° Folded Corner, 5*3.6m;
60° Folded Corner, 8*8m(at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ55mm
Power Input: AC100~240V
Communication: Tuya-Zigbee
