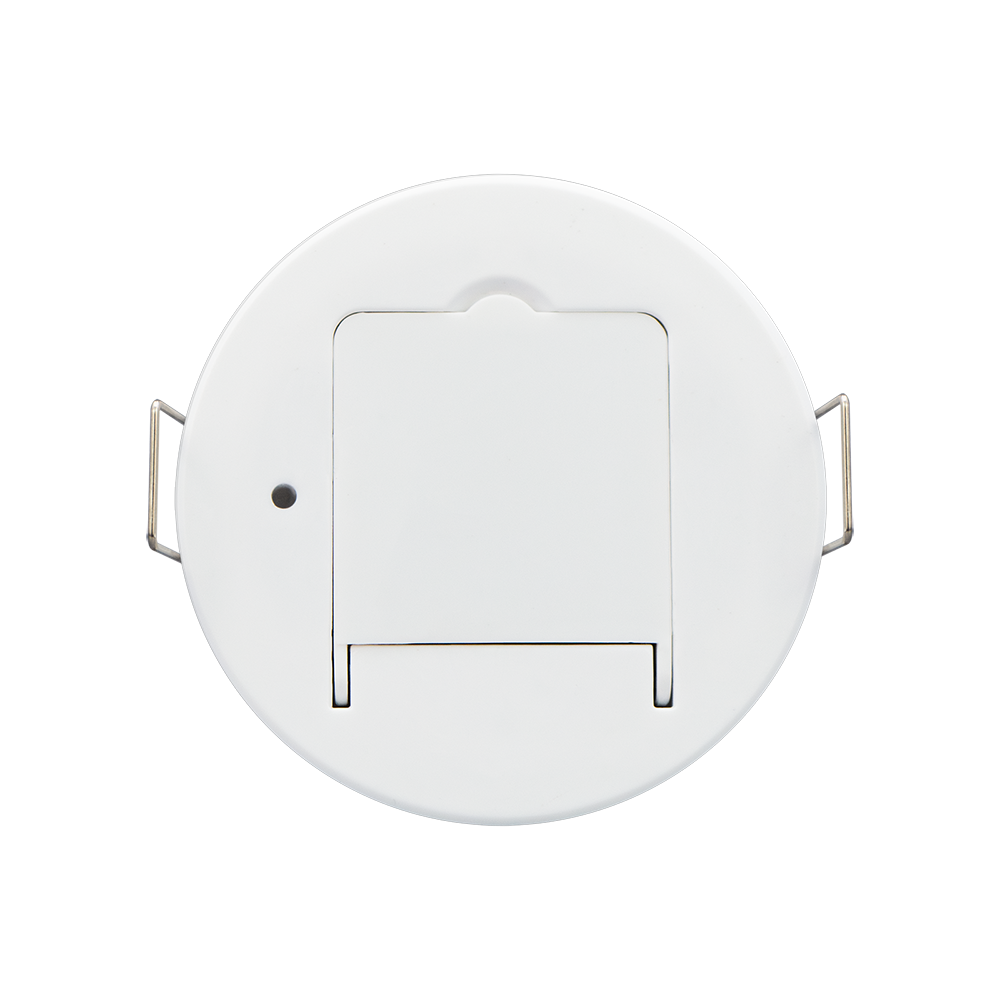

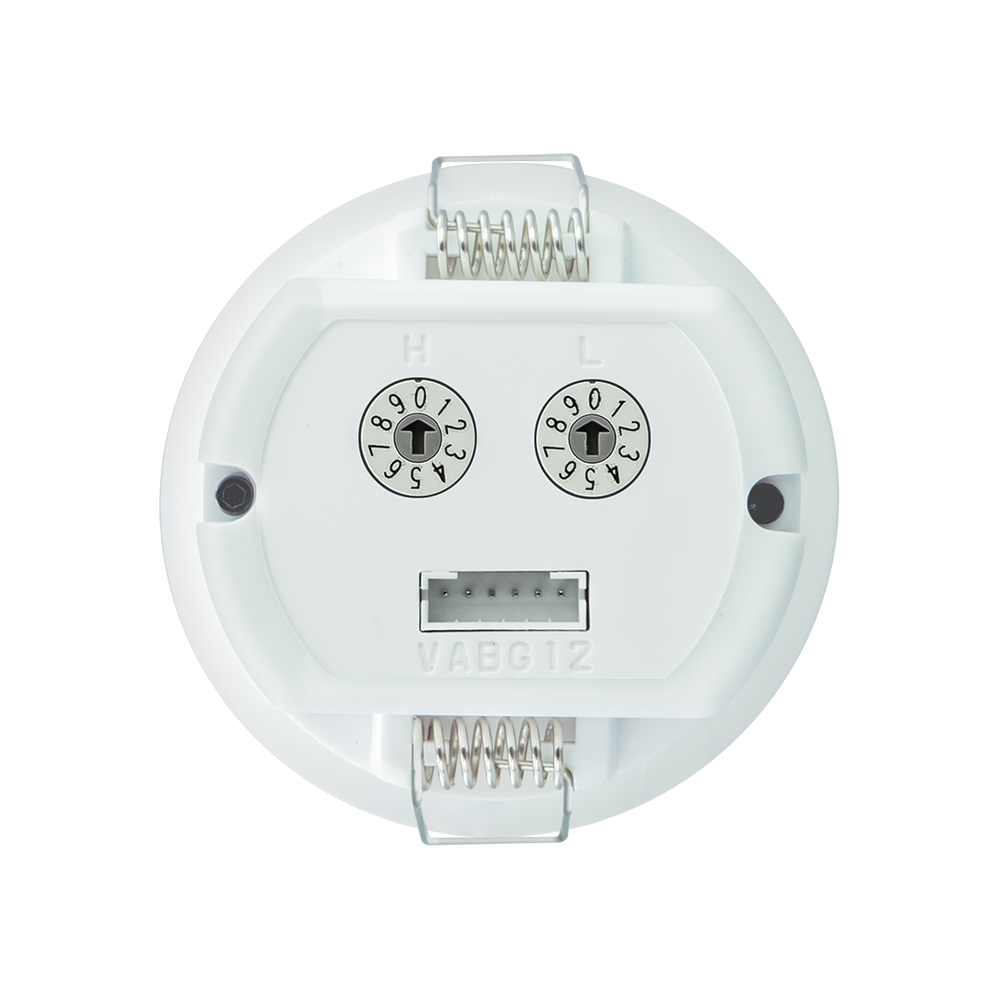

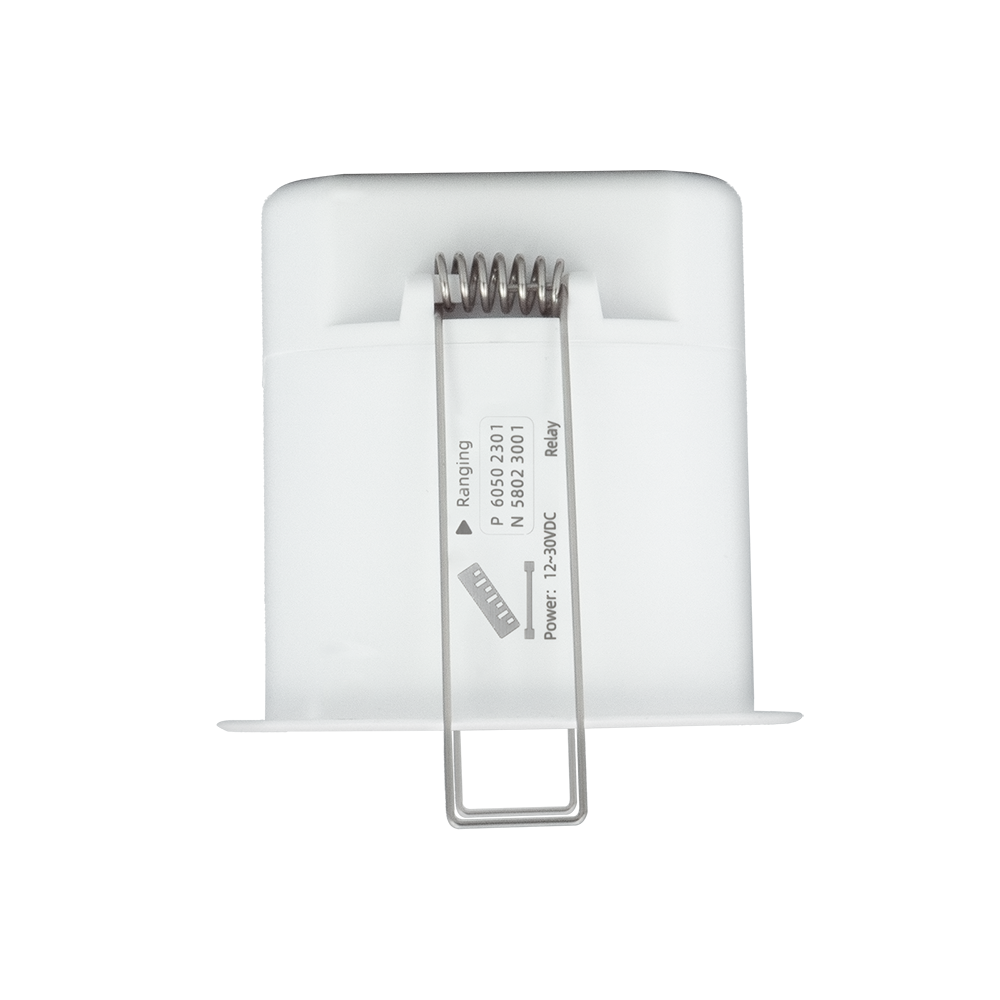

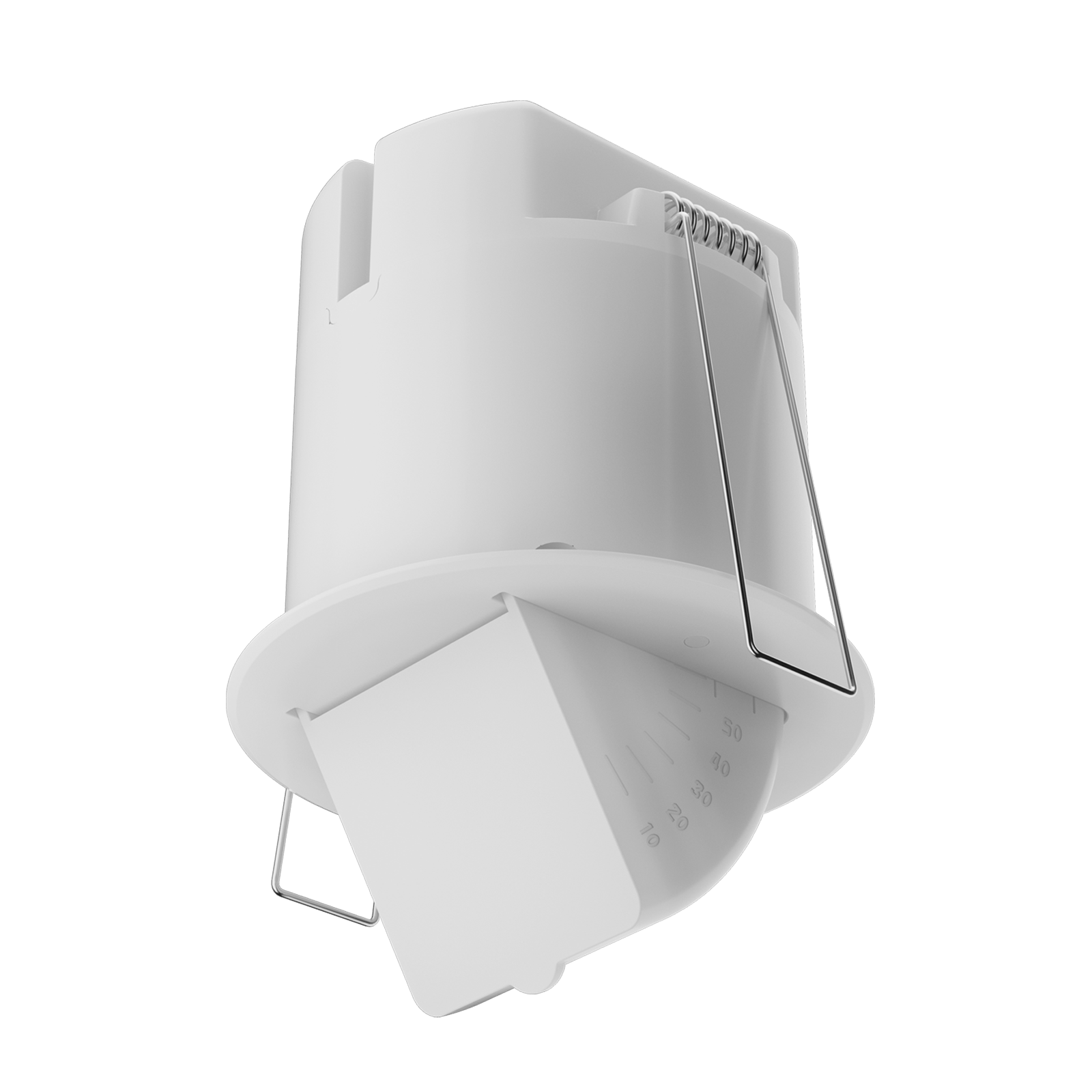

Radar Ranging Sensor (Dry Contact)
No.R5-Rang-REL
SKU: 60.50.2301
Product Model: CTL-SEN-R5/2301
Realize dynamic ranging judgment of detection targets
This sensor uses millimeter-wave radar to track targets. It uses radar waves to precisely capture the target's distance, direction, and dynamic information, enabling detection of human bodies within a range of up to 8 meters. It features a built-in 0-32,000 Lux illuminance meter chip, Stepless adjustable detection range, and a breathing indicator light.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range:
0° No Corner Folding, φ1.5m;
60° Folded Corner, 3*7m(at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ55mm
Power Input: DC12~30V
Interface: Dry Contact
Realize dynamic ranging judgment of detection targets
This sensor uses millimeter-wave radar to track targets. It uses radar waves to precisely capture the target's distance, direction, and dynamic information, enabling detection of human bodies within a range of up to 8 meters. It features a built-in 0-32,000 Lux illuminance meter chip, Stepless adjustable detection range, and a breathing indicator light.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range:
0° No Corner Folding, φ1.5m;
60° Folded Corner, 3*7m(at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ55mm
Power Input: DC12~30V
Interface: Dry Contact
