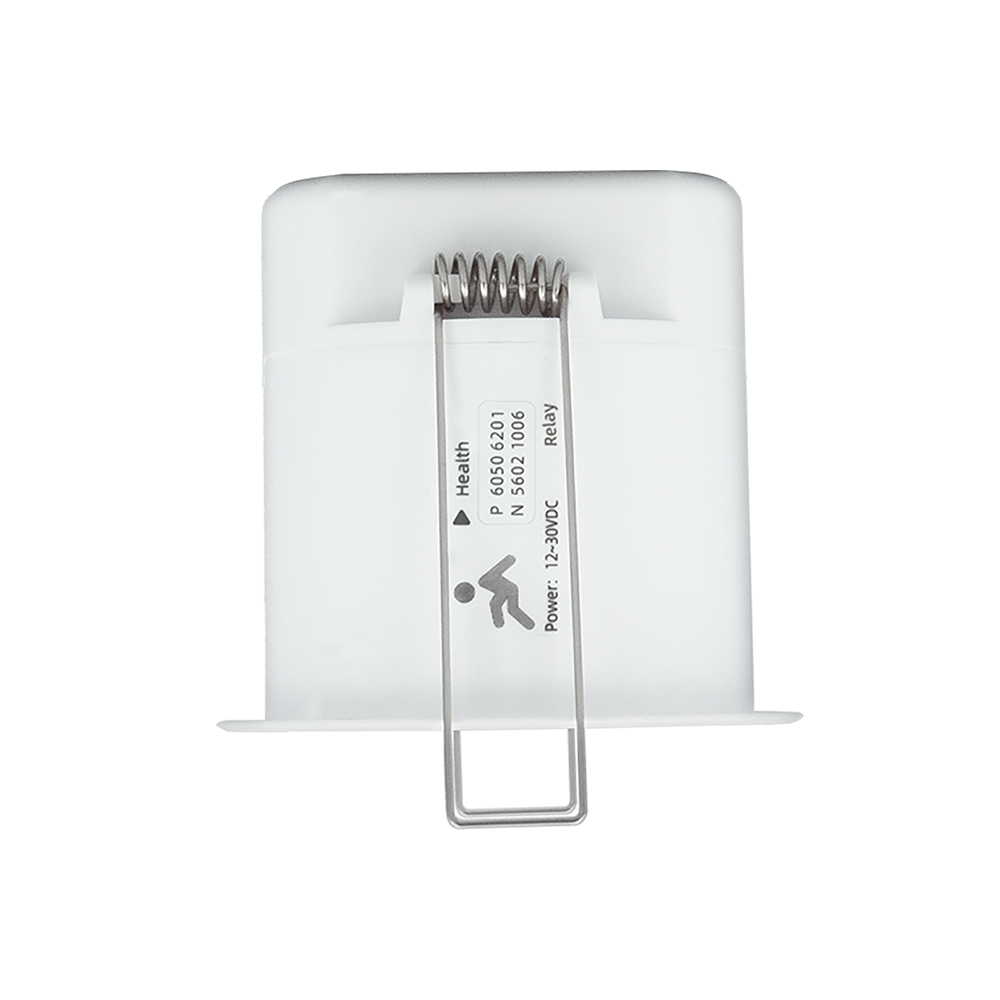

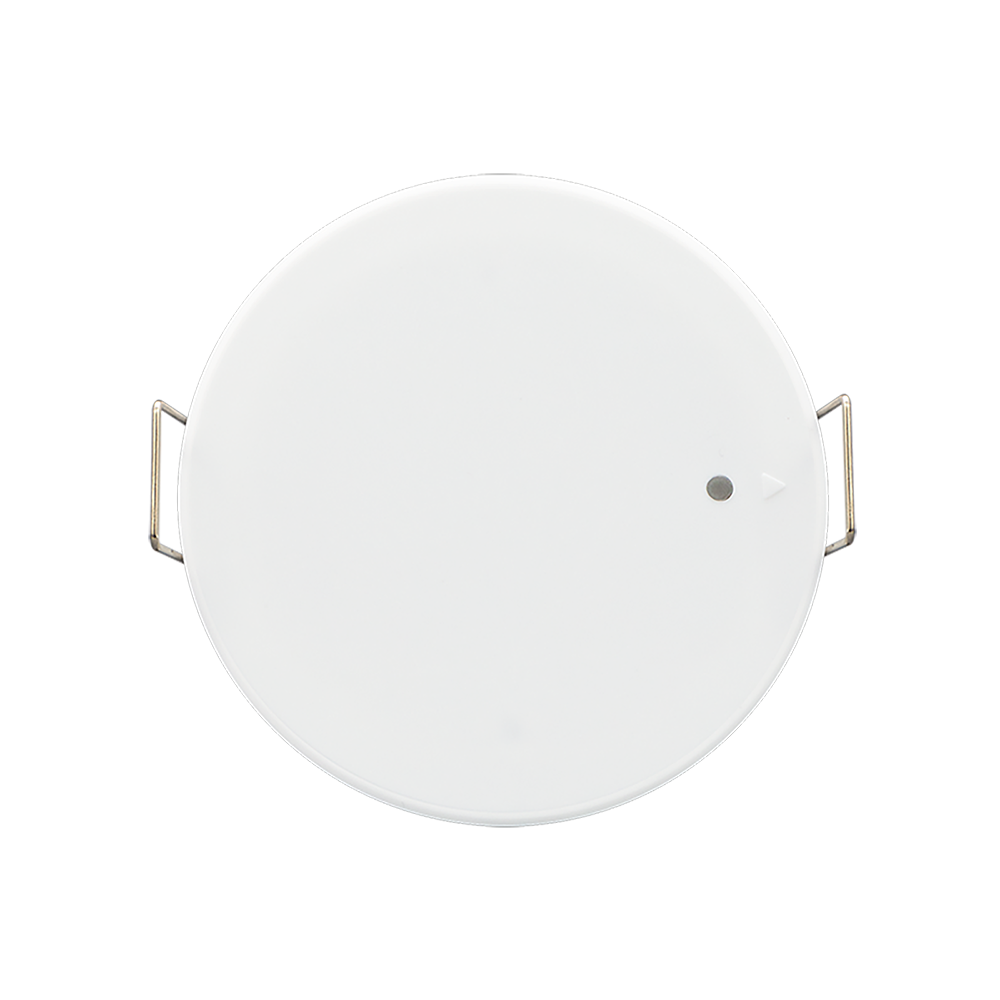

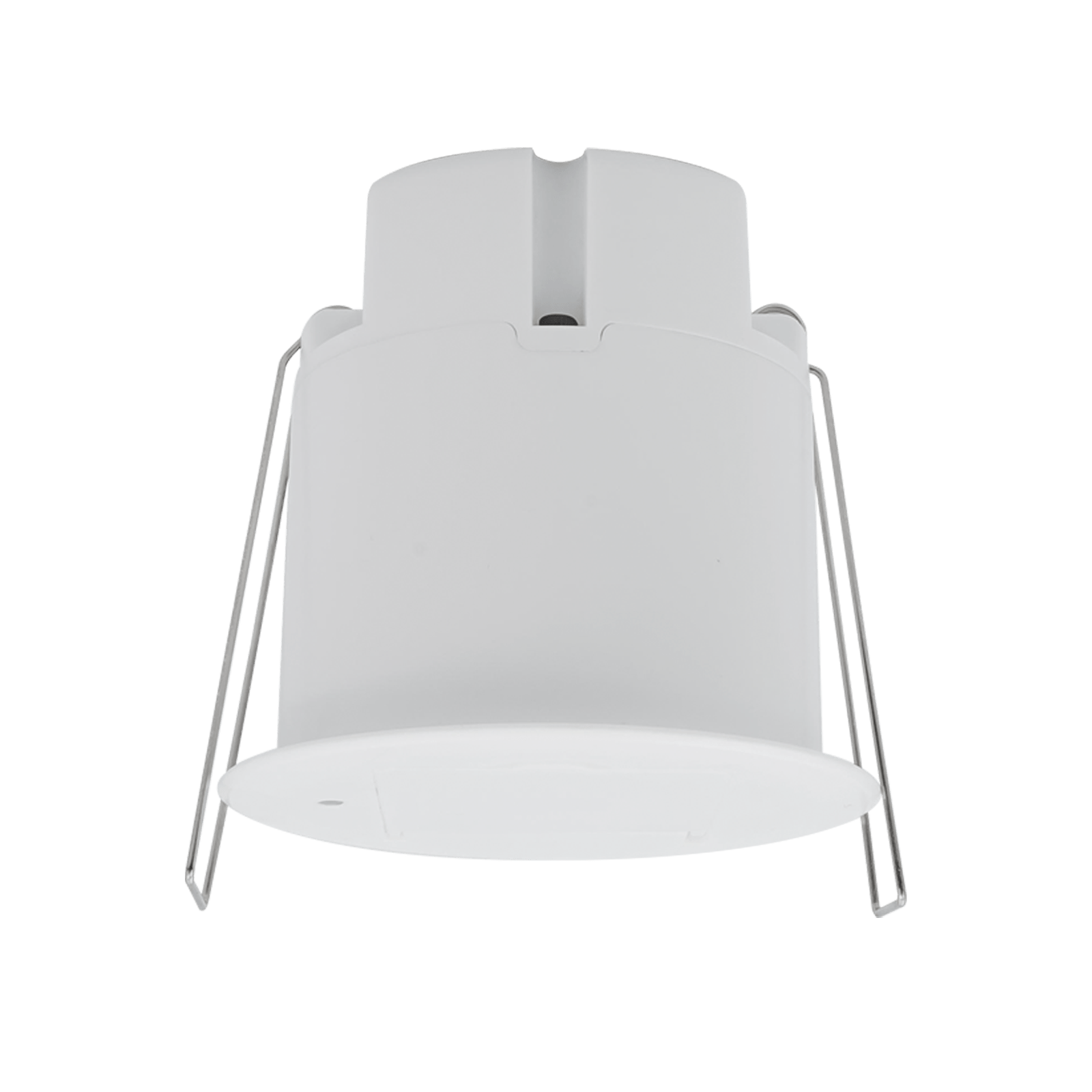

The CTL-SEN-R5/6201 is a flagship human presence sensor powered by advanced 60GHz 4D mmWave radar technology. Featuring a robust 4T4R antenna array, it delivers ultra-high resolution to support complex functions, including real-time trajectory tracking, people counting, fall detection, and precise bed occupancy monitoring (in-bed/out-of-bed status). By capturing minute physiological signals (such as breathing), it ensures reliable performance within a ø6.0-meter coverage area, making it an ideal solution for premium smart home, healthcare, and elderly care applications.
Features
Presence: Detects stationary presence via breathing micro-motions within 5.0 × 6.0m.
Fall Detection: Real-time fall identification via point cloud and posture analysis.
Bed Monitor: Tracks "in-bed" vs. "out-of-bed" status in defined zones.
Zone Alert: Monitors boundaries (e.g., doorways) for entry/exit alerts.
Counting: Real-time counting and location tracking for space management.
Sensitivity and detection distance can be adjusted independently.
Integrated high-precision sensor for accurate indoor illuminance monitoring.
Dual independent dry contact outputs for simultaneous dual-function monitoring.
Adjustable lighting threshold.
Supports parameter configuration and status readout via IR remote control.
Indicator LED brightness automatically adjusts to ambient light levels.
Specifications
Communication Type
Dry Contact
Input Voltage
DC 12 to 30 V
Power Consumption
0.5 W (Max)
Dry Contact Output
Normally Open Mode, Normally Closed Mode, Normally Open Pulse, Normally Closed Pulse
Output Channels
2 Channels (Default: Presence & Fall)
Dry Contact Load
AC or DC ≤ 30 V, ≤ 200 mA
Indicator Light
RGB LED
Detection Mode
60GHz FMCW Radar
Antenna Array
4T4R
Operating Frequency
60 to 64 GHz
Transmit Power
≤ 10 dBm
Installation Method
Recessed Ceiling Mount
Mounting Height
2.0 to 3.2 m
Detection Angle
360°
Detection Coverage
5.0 × 6.0 m
Detection Range
1.0 to 6.0 m (sensor to target)
Sensitivity
0% to 100%
Illuminance Monitoring
0 to 32,000 Lux (Accuracy ±4%)
Delay Time
1 to 3,600 seconds
Product Size
Φ65 mm × 60 mm
Cutout Size
Φ55 mm
Product Weight
70 g
Cable Assembly
UL1007 20AWG Cable Length: 150 mm
Operating Environment
Indoor -20 to 45°C, Humidity < 95% RH (Non-condensing)
Storage Temperature
-40 to 85°C
Protection Level
IP20
Housing Material
PC
Range
Delivering high-precision three-dimensional spatial monitoring at a standard mounting height of 3.0 meters, this 60 GHz eldercare radar sensor provides a horizontal detection range of approximately 5.0 meters × 6.0 meters.
Front View
Top View
Dimensions
Recessed mount, product outer diameter 65 mm, product depth 60 mm, cutout diameter 55 mm.
Product Dimensions
Applications
HomeEldercareHotelLightingOfficeSecurity
Mounting
Interference Avoidance: Avoid installing near constantly moving objects (e.g., curtains, plants) or large reflective surfaces (e.g., metal ducts, mirrors) to prevent false triggering.
Device Spacing: Maintain a minimum distance of 4 meters between multiple sensors to prevent mutual interference.
Mounting: Ensure the installation surface is vibration-free. Note that radar signals can penetrate surfaces; avoid moving objects directly behind the installation wall/ceiling.
Wiring Safety: Disconnect power before wiring. Use certified cables and ensure the circuit includes appropriate short-circuit and overload protection.
Disclaimer: Specifications are subject to change without notice. This product is an auxiliary device, not a medical instrument. The manufacturer is not liable for issues caused by improper installation or misuse.

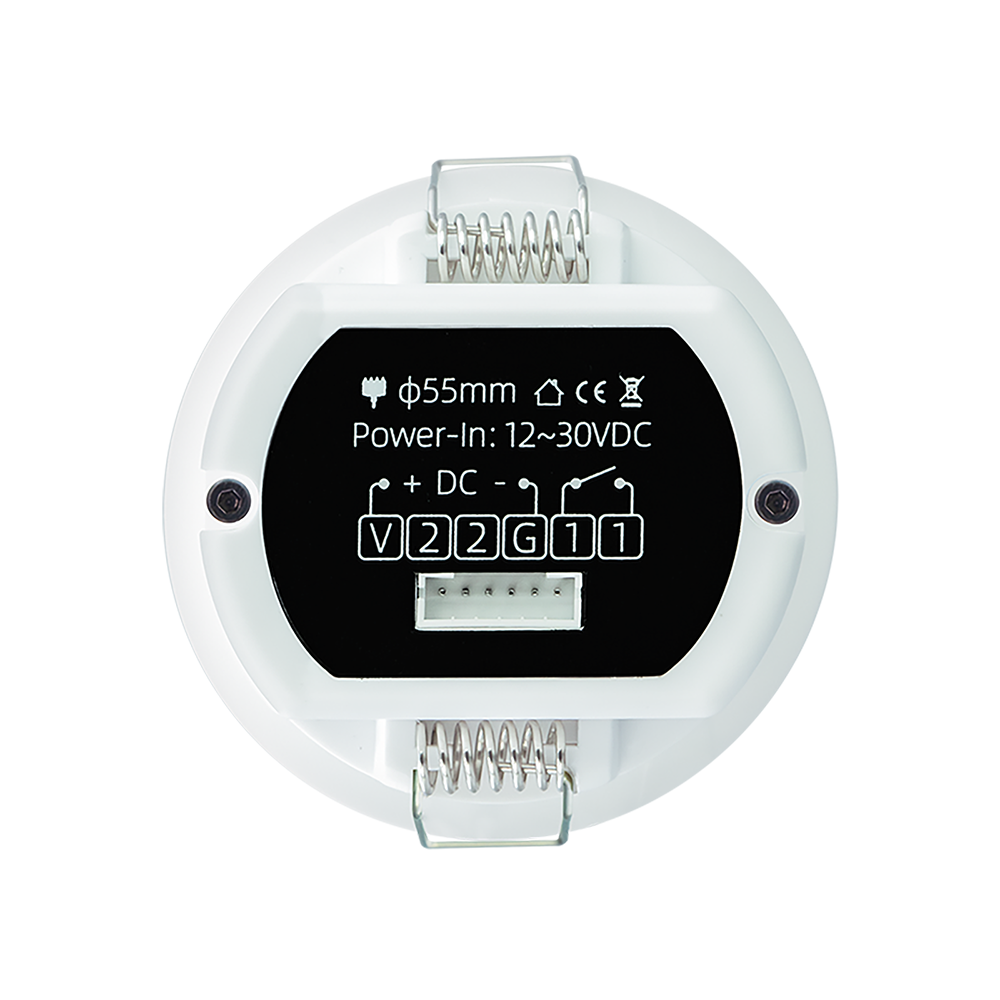

Wiring Diagram
Debugging
IR Remote Control
Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.
