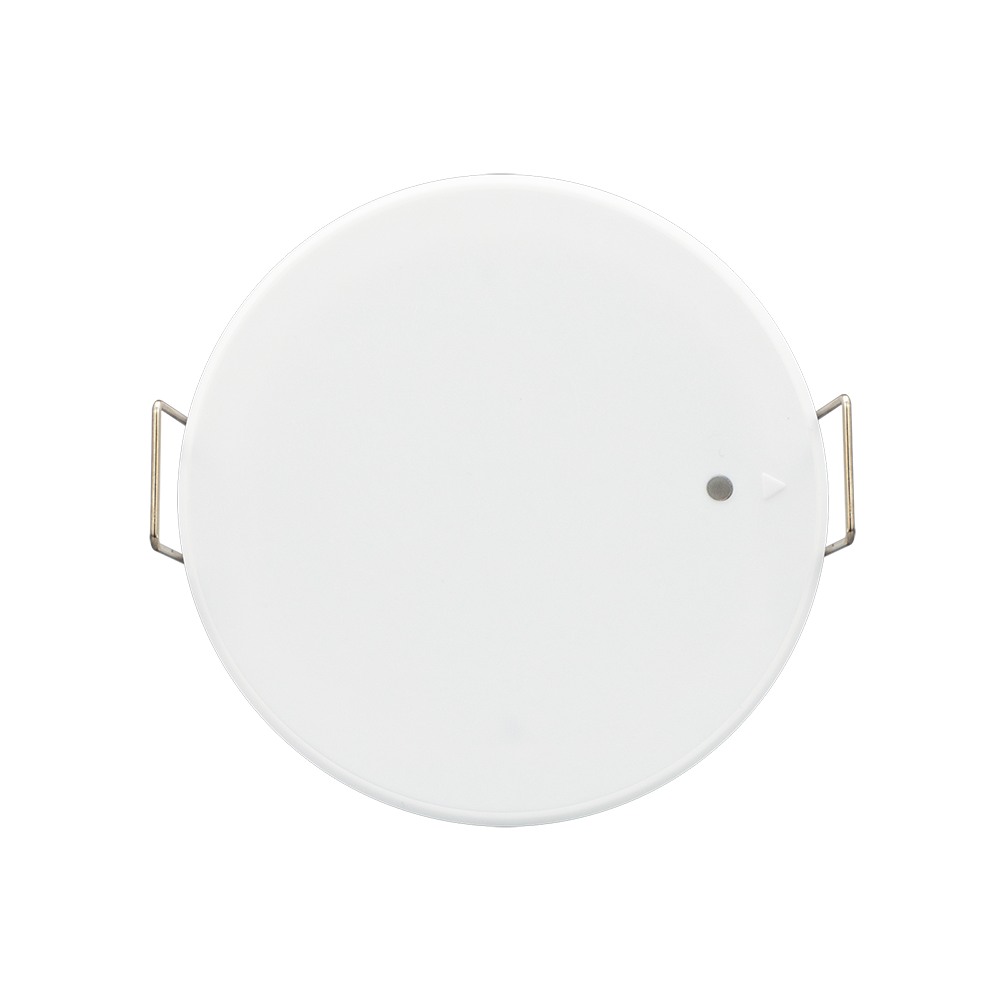

The CTL-SEN-R5/6203 is a flagship human presence sensor powered by advanced 60GHz 4D mmWave radar technology. Featuring a robust 4T4R antenna array, it delivers ultra-high resolution to support complex functions, including real-time trajectory tracking, people counting, fall detection, and precise bed occupancy monitoring (in-bed/out-of-bed status). By capturing minute physiological signals (such as breathing), it ensures reliable performance within a ø6.0-meter coverage area, making it an ideal solution for premium smart home, healthcare, and elderly care applications.
| Communication Type | KNX TP |
| Input Voltage | DC 21 to 30 V |
| Operating Current | ≤ 6 mA |
| Auxiliary Voltage | DC 12 to 30 V (< 3 W) |
| Indicator Light | RGB LED |
| Detection Mode | 60GHz FMCW Radar |
| Antenna Array | 4T4R |
| Operating Frequency | 60 to 64 GHz |
| Transmit Power | ≤ 10 dBm |
| Installation Method | Recessed Ceiling Mount |
| Mounting Height | 2.0 to 3.2 m |
| Detection Angle | 360° |
| Detection Coverage | 5.0 × 6.0 m |
| Detection Range | 1.0 to 6.0 m (sensor to target) |
| Sensitivity | 0% to 100% |
| Illuminance Monitoring | 0 to 32,000 Lux (Accuracy ±4%) |
| Delay Time | 1 to 3,600 seconds |
| Product Size | Φ65 mm × 60 mm |
| Cutout Size | Φ55 mm |
| Product Weight | 74.5 g |

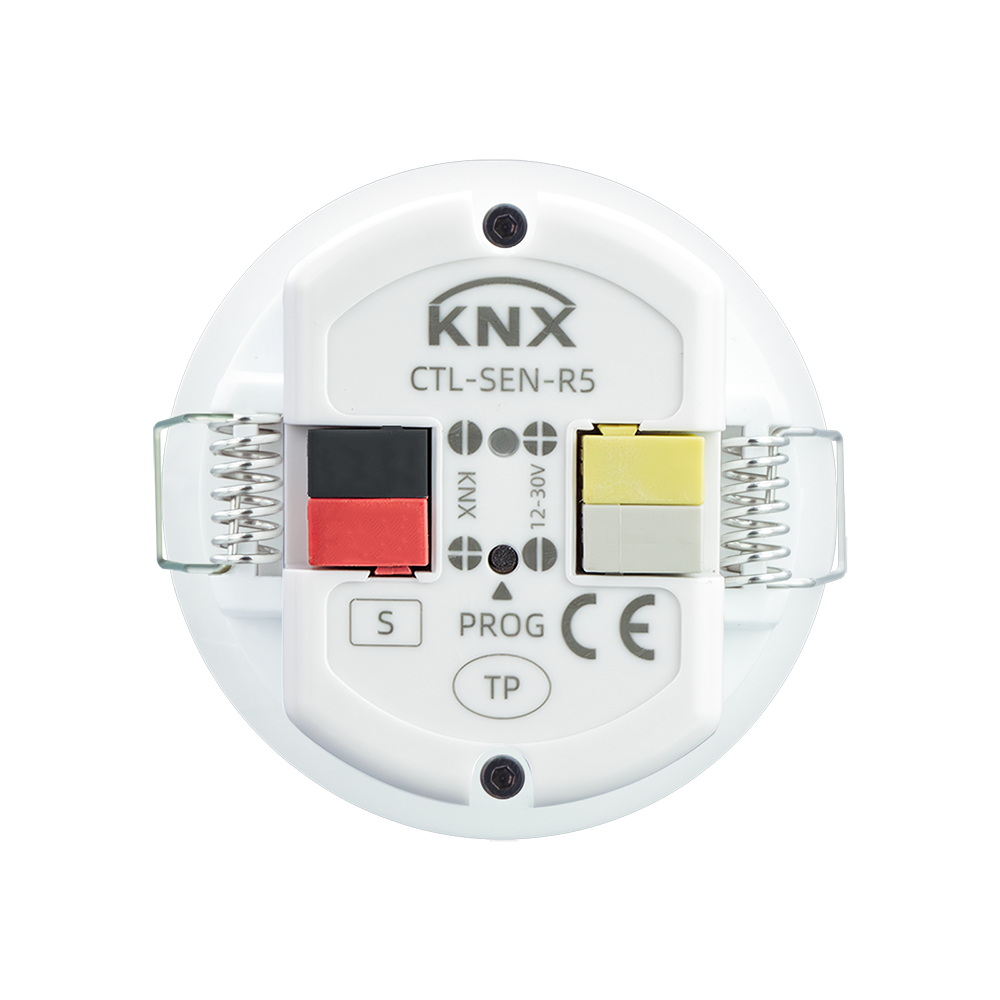

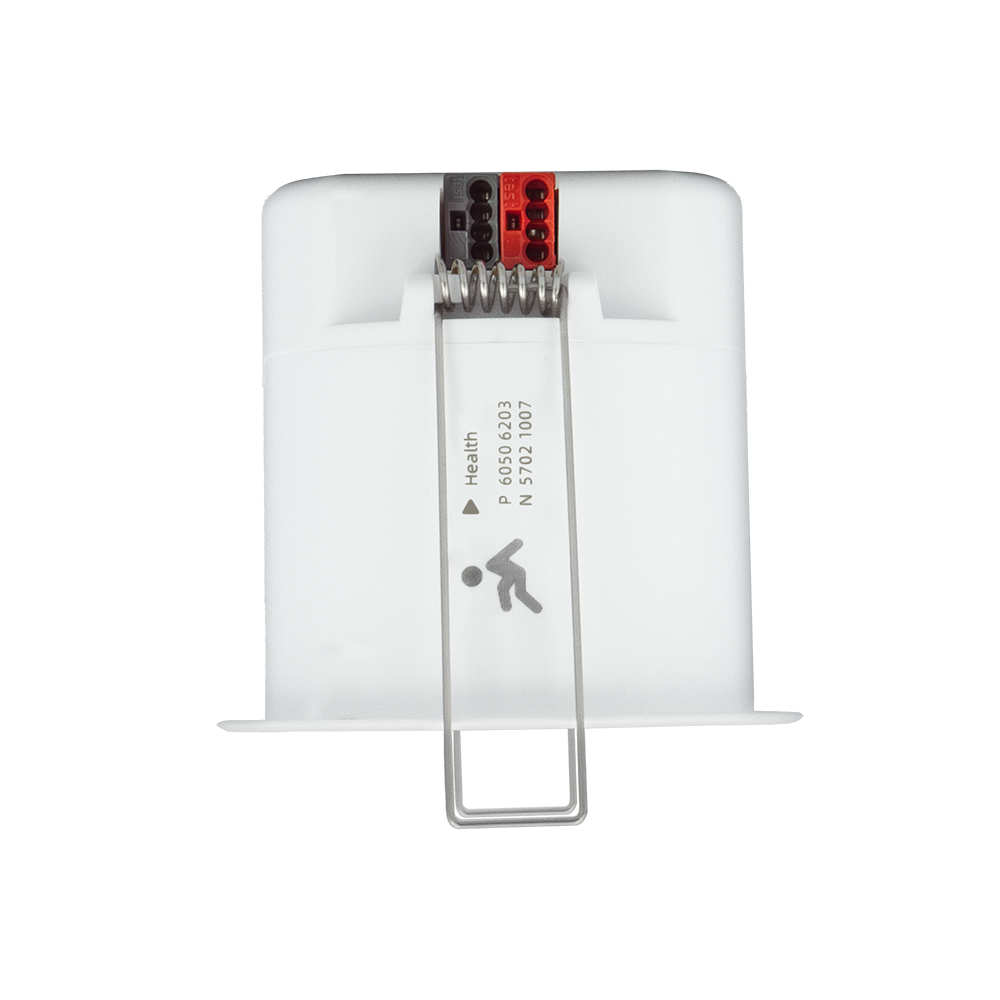

| Bus Terminal | Red / Black |
| Power Terminal | Yellow / white |
| Programming button | Physical Address Assignment |
| Bus Connection | Φ0.6 to 0.8 mm |
| Operating Temperature | Indoor -20 to 45°C |
| Operating Humidity | < 95% RH (Non-condensing) |
| Storage Temperature | -40 to 85°C |
| Protection Level | IP20 |
| Housing Material | PC |
Delivering high-precision three-dimensional spatial monitoring at a standard mounting height of 3.0 meters, this 60 GHz eldercare radar sensor provides a horizontal detection range of approximately 5.0 meters × 6.0 meters.

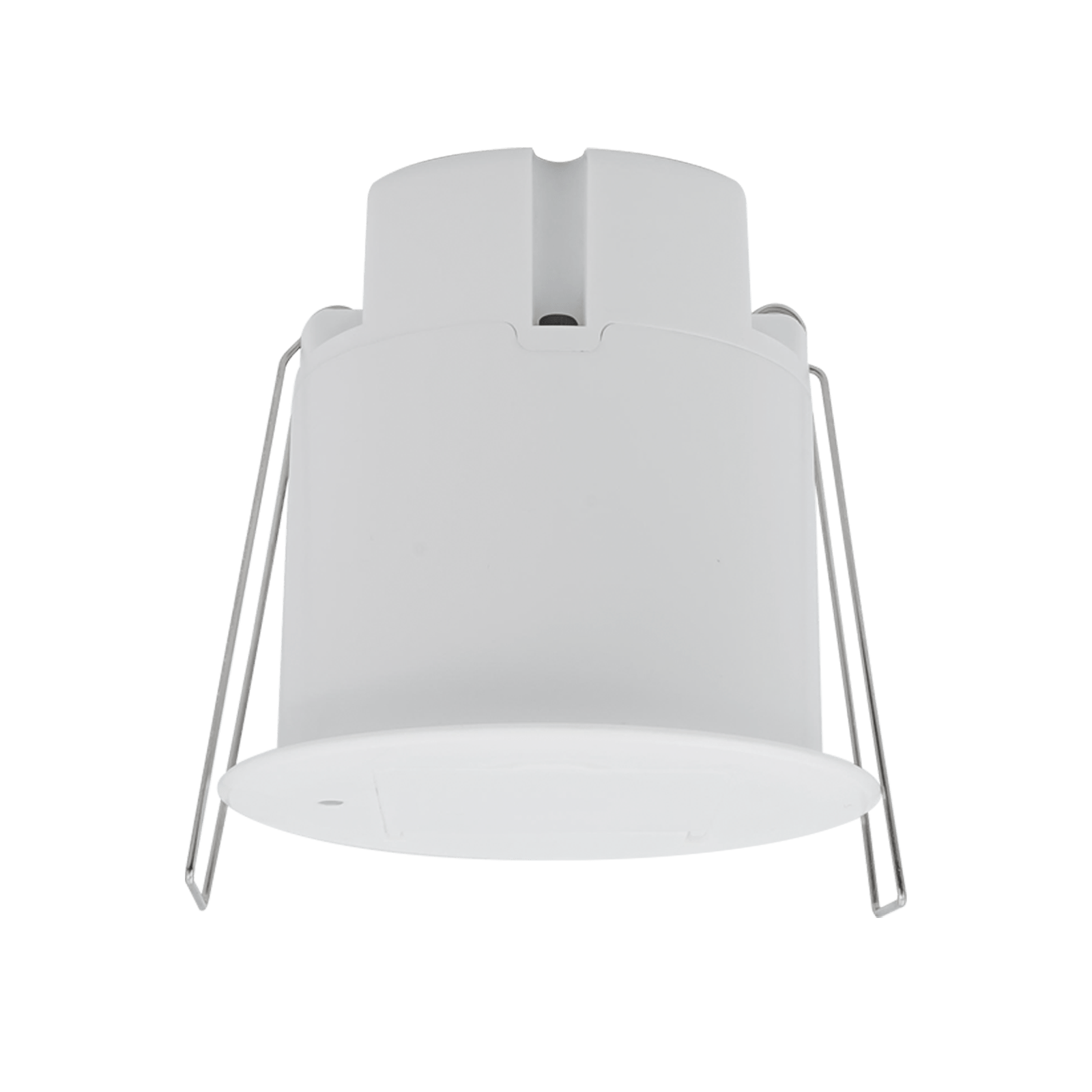

Recessed mount, product outer diameter 65 mm, product depth 60 mm, cutout diameter 55 mm.
Interference Avoidance: Avoid installing near constantly moving objects (e.g., curtains, plants) or large reflective surfaces (e.g., metal ducts, mirrors) to prevent false triggering.
Device Spacing: Maintain a minimum distance of 4 meters between multiple sensors to prevent mutual interference.
Mounting: Ensure the installation surface is vibration-free. Note that radar signals can penetrate surfaces; avoid moving objects directly behind the installation wall/ceiling.
Wiring Safety: Disconnect power before wiring. Use certified cables and ensure the circuit includes appropriate short-circuit and overload protection.
Disclaimer: Specifications are subject to change without notice. This product is an auxiliary device, not a medical instrument. The manufacturer is not liable for issues caused by improper installation or misuse.
Designed for ultimate convenience and efficiency, this product supports quick on-site configuration and parameter reading using an infrared (IR) remote control. Once deployed, debugging and maintenance can be easily accomplished even without relying on a smart home platform.
ETS is the only official commissioning and programming software for the KNX wired smart home standard, used by professional engineers to configure wired systems in luxury homes and commercial buildings without relying on the cloud, ensuring ultimate stability and security.
