Home > R5 Series > R5_UART > 60506281-60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
1/1
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)

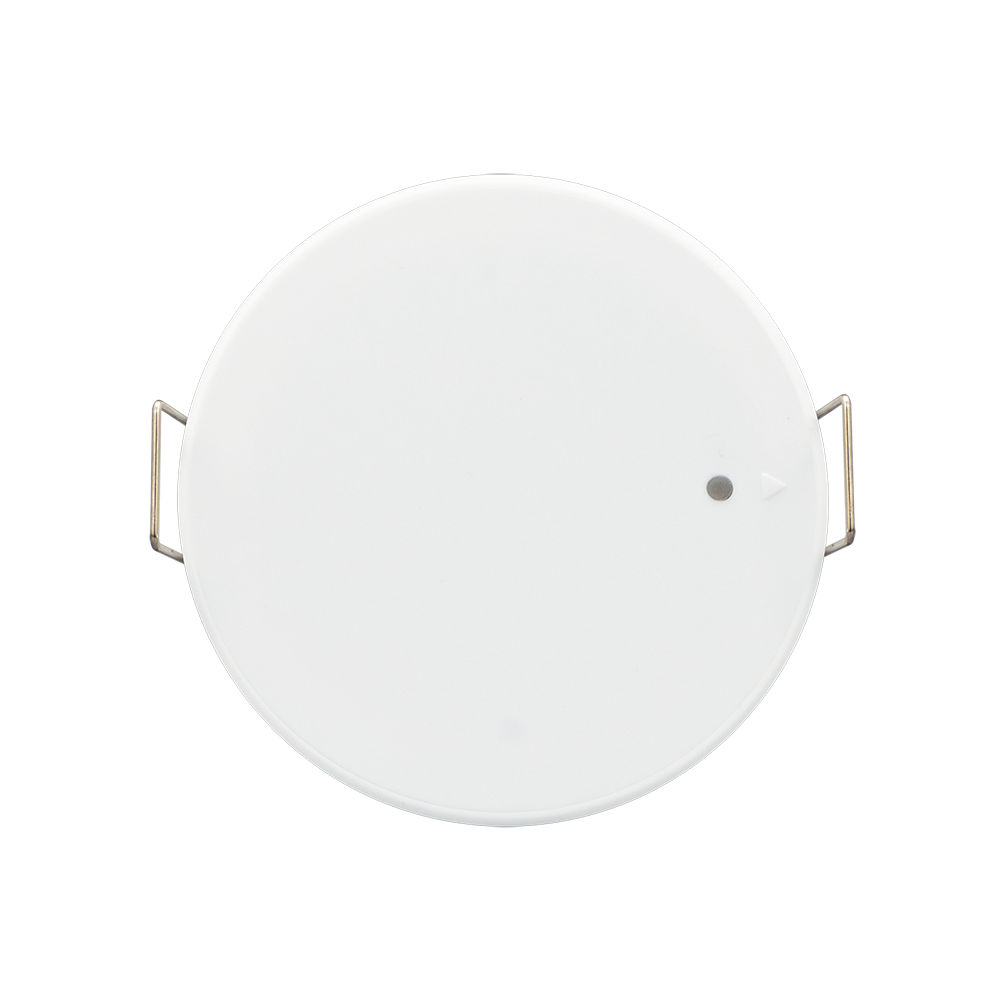

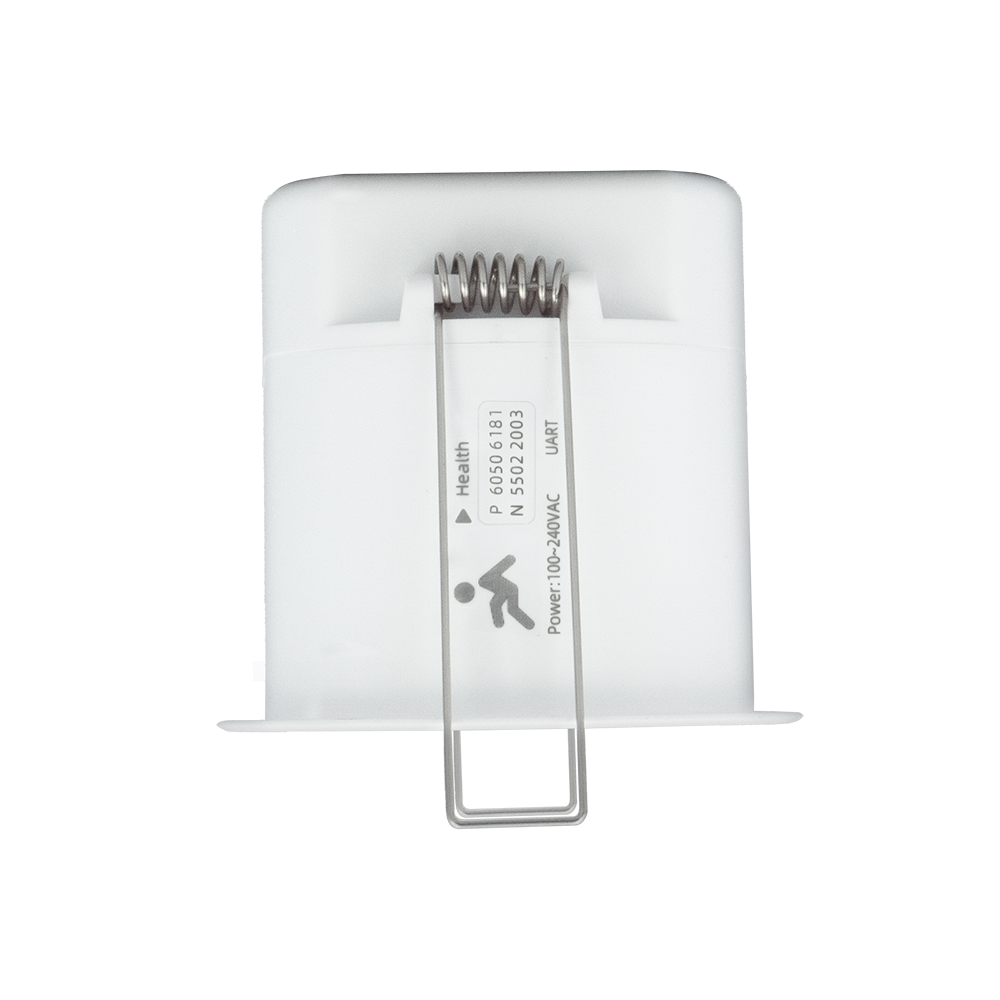

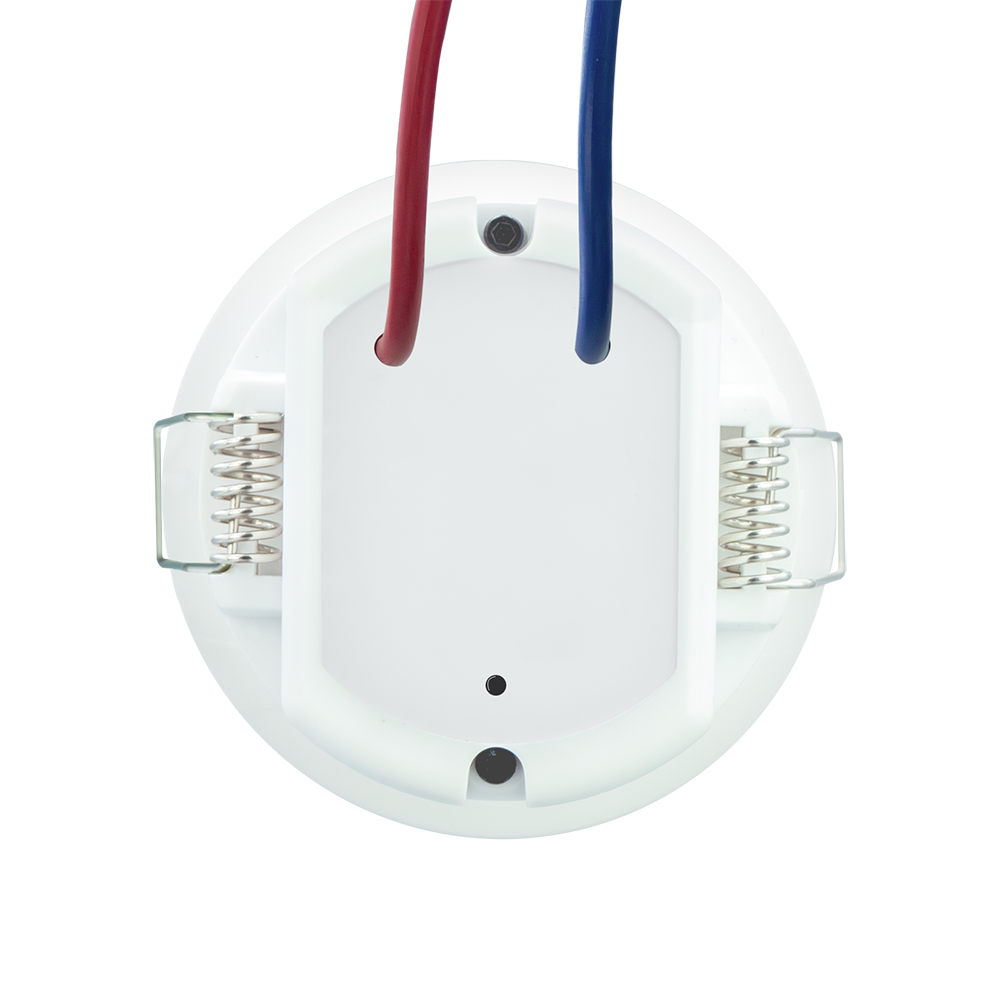

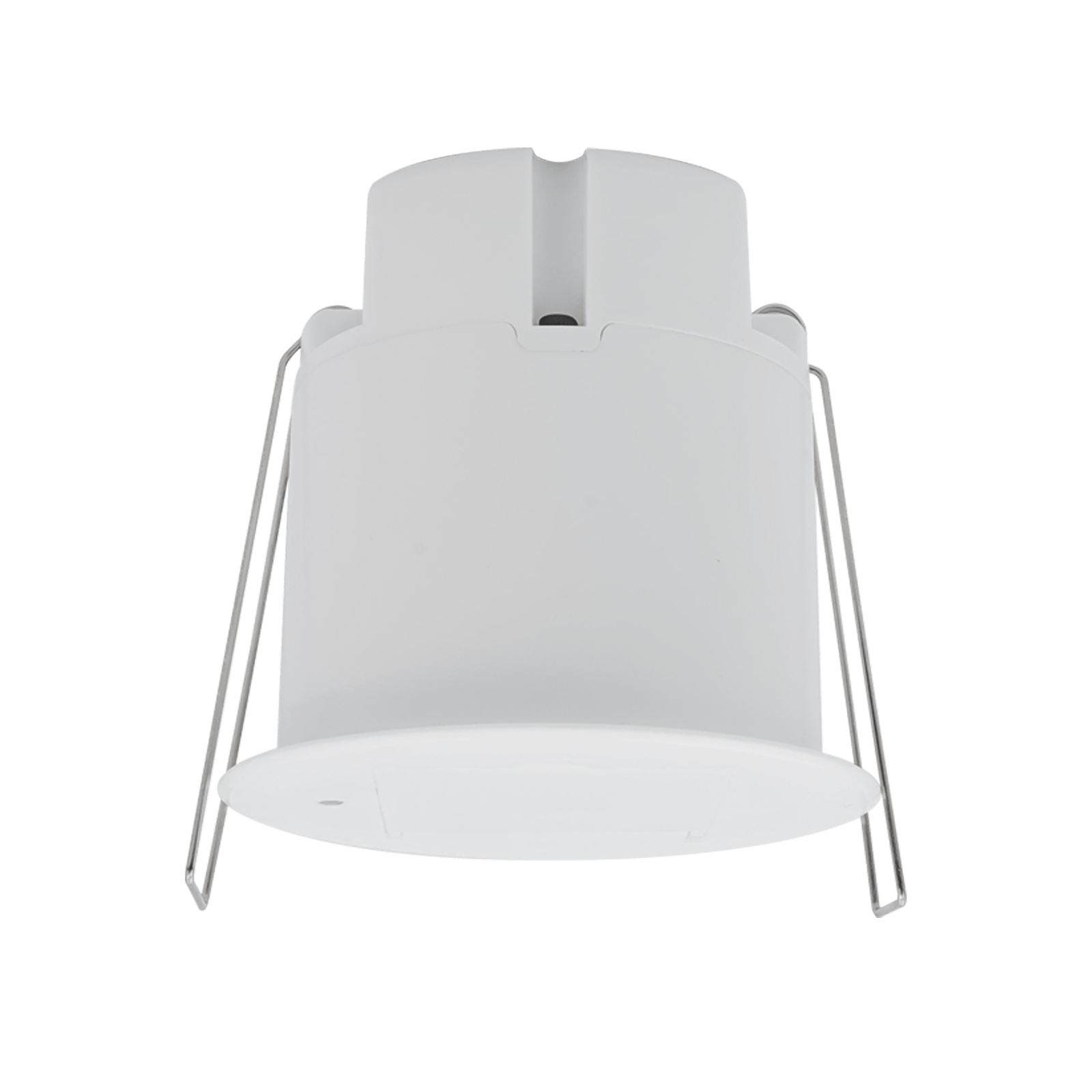

60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)

No.R5-60G-UART
SKU: 60.50.6281
Product Model: CTL-SEN-R5/6281

60G mmWave Radar Monitoring Sensor
Falls/presence/left bed/right bed/area exit in one

Using cutting-edge 60GHz FMCW (Frequency-Modulated Continuous Wave) millimeter-wave radar detection technology, multidimensional detection is performed through the CTL artificial intelligence algorithm, enabling the monitoring of a person's movement status, posture, direction, and location information.

Installation Height: 2.0~3.2m (Ceiling)
Detection Angle: 360°
Detection Range: 5*6m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ55mm
Power Input: AC100~240V
Interface: UART (3.3V)
4.8 (52 Reviews)
8651 Sold
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (49)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
1/1
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)
  • 60G Eldercare Radar Sensor Fall/Get Up/Presence (UART)

AI Algorithm Training

AI Algorithm Training
Privacy Protection

Privacy Protection
Fall Detection

Fall Detection
Leaving Home Monitoring

Leaving Home Monitoring
Leave/Return to Bed

Leave/Return to Bed
  • Description
  • Features
  • Resources

      High Precision at 60GHz

This sensor adopts 60GHz FMCW (Frequency-Modulated Continuous Wave) millimeter-wave radar detection technology. Compared to 24GHz radar, the higher frequency of 60GHz provides greater accuracy and resolution, making it suitable for high-precision application scenarios such as human posture analysis and respiration monitoring.

      All-in-One Multifunctional Product

With a built-in algorithm processor, it does not require cloud processing, thus protecting user privacy. It enables multidimensional detection of human movement status, posture, direction, and location information, facilitating presence monitoring, fall detection, bed exit monitoring, home exit monitoring, and nocturnal monitoring, providing comprehensive safety protection for the elderly.

      Broad Application Capabilities

Non-camera-based monitoring, no wearable devices required, built-in algorithm processor, and no cloud processing protect user privacy. This allows the product to be used not only in conventional home bedrooms, office spaces, and public corridors but also in bathrooms, toilets, and elderly care homes where privacy protection is emphasized.

      Rich Application Scenarios

Supports ceiling installation, with a height range of 2.5m to 3.2m and a detection range of 5m×6m, providing 24-hour continuous protection. It is suitable for various home environments such as single-story, duplex, and villas, as well as hospitals, nursing homes, rehabilitation institutions, and community residences, offering precise monitoring of falls, prolonged stays, abnormal situations, and automatic alarms.

Designation Value
Detection Mode 60GHz millimeter wave radar
FMCW（Frequency Modulated Continuous Wave）
Installation Height 2.0 ~ 3.2 meters
Detection Angle  360°
Detection Range When installed at 2.5 ~ 3.2 m:
Detection range: 5.0 * 6.0 m
Detection Sensitivity 0 ~ 100%
Illumination Sensing 0 ~ 32000 Lux (Accuracy ± 4%）
Product Dimensions φ65mm * 60mm
Hole Size φ55mm
Product Weight 62g
Power Input AC 100 ~ 240V (Power consumption < 7.8W)
Working Environment Temperature -20 ~ 45 ℃ Humidity < 95%
Delay Time 1 ~ 3600 seconds
Type
 Wireless
LED Indicator ① Flash for 3 seconds when receiving configuration commands.
② Stay on constantly when detecting someone, and the indicator light's brightness will adjust automatically according to the ambient light.
③ The off mode can be set (the indicator light won't light up even when someone is detected).
Indicator Light Instructions
Someone detected: The blue light breathes and adjusts its brightness automatically.
No one detected: The blue light turns off.
Fall alarm: The red light flashes at 3Hz, continuously.
Left side out of bed: The green light flashes once, then exits.
Right side out of bed: The green light flashes twice, then exits.
Left side back to bed: The green light flashes three times, then exits.
Right side back to bed: The green light flashes four times, then exits. Leaving the area: The blue light stays on for 2 seconds, then exits.
Guides & Manuals
Spec Sheet: R5-60G-UART                      PDF PDF下载
