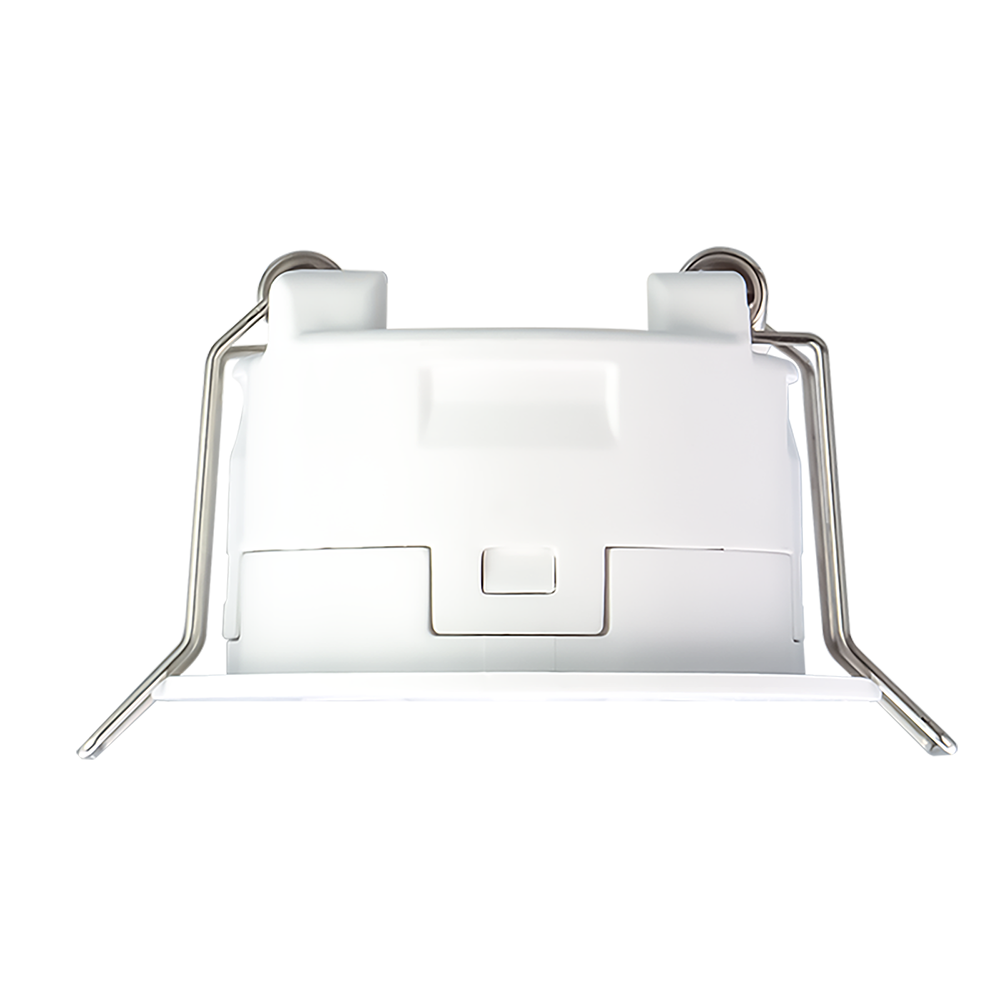

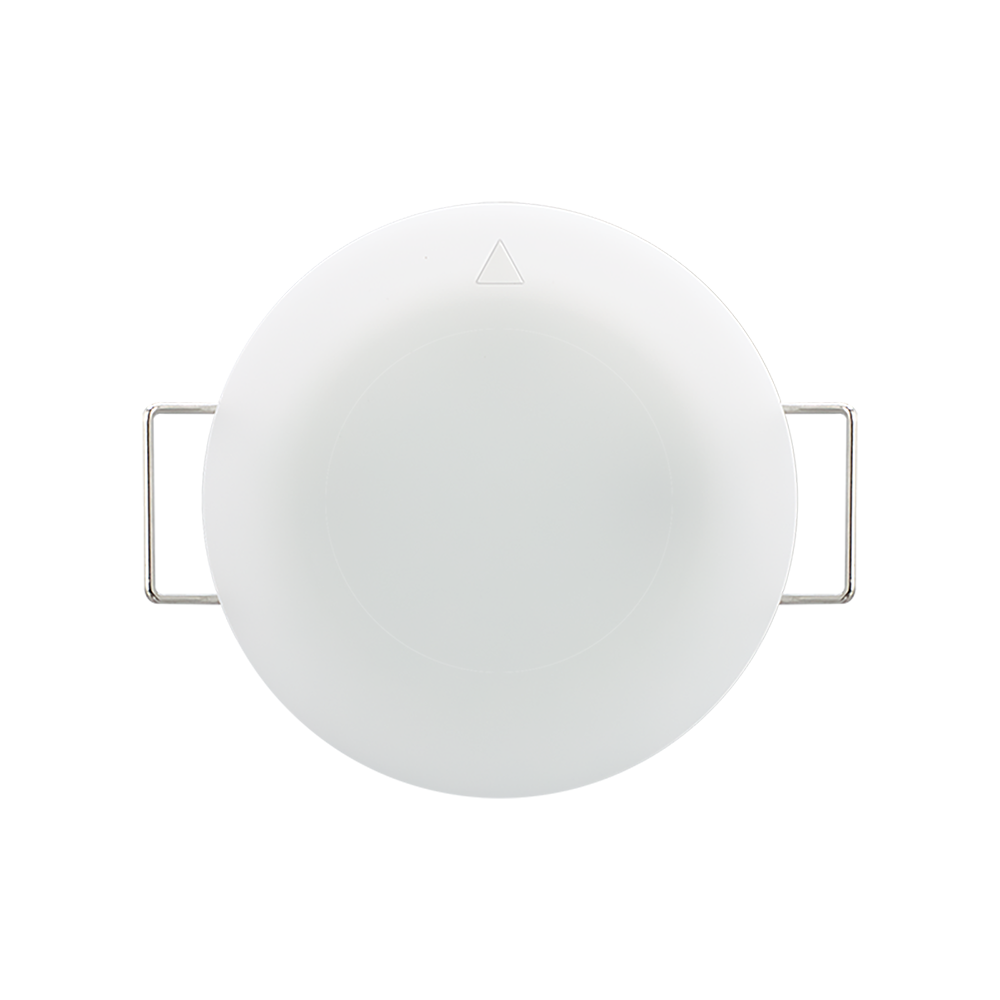

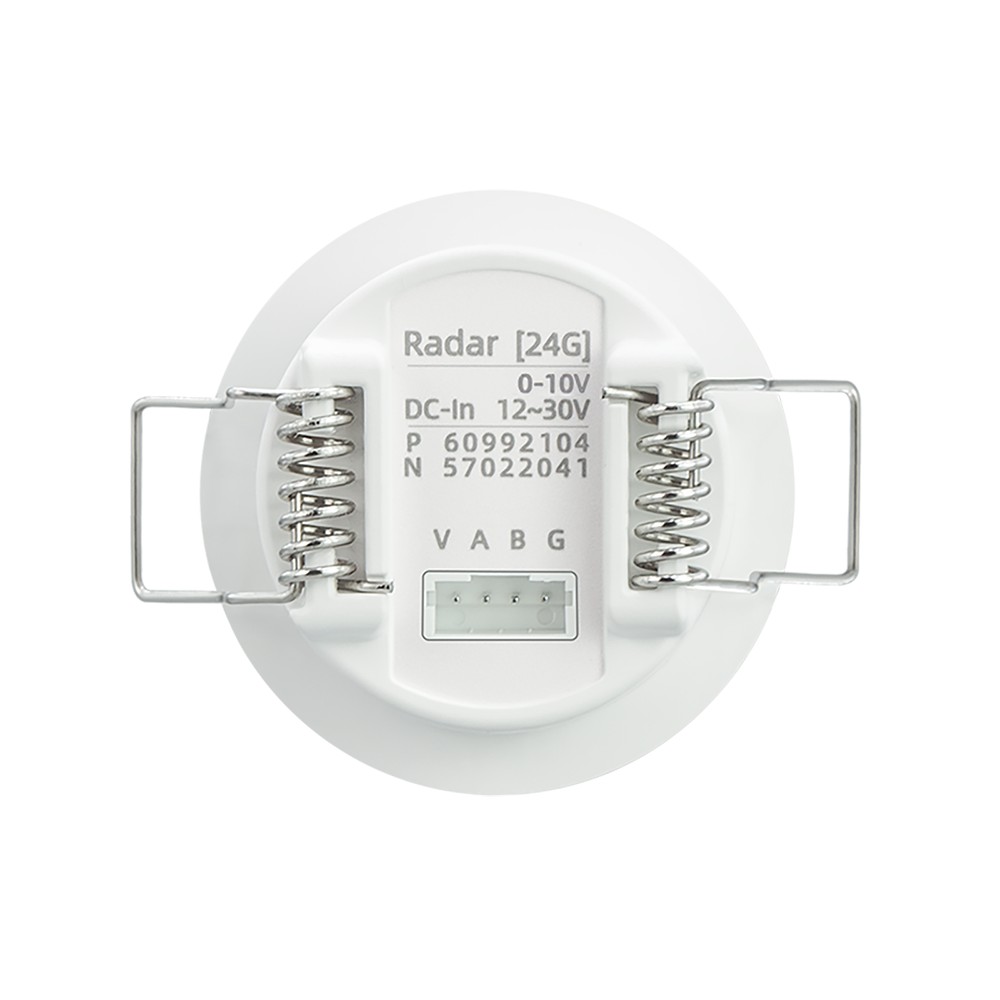

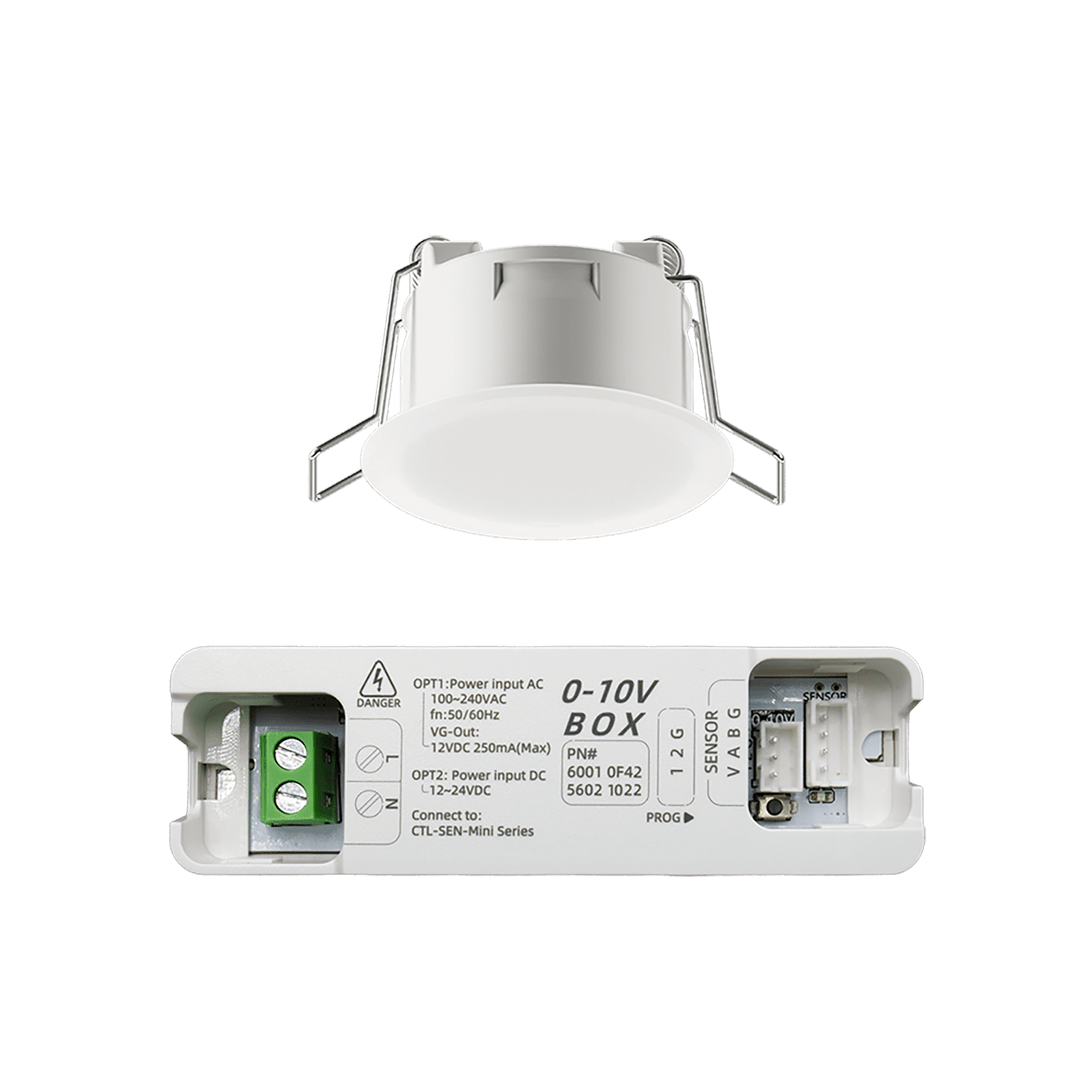

Mini 24G Radar Presence Sensor (0-10V)
No.Mini-24G-10V
SKU: 60.99.2104.F42
Product Model: CTL-SEN-Mini/2104.F42
Accurate detection of presence and minor motion states
It is a mmWave radar sensor capable of detecting human presence, equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol's exclusive algorithm to confirm human status by assessing breathing patterns. It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ8m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Power Input: AC100~240V
Output: 2 Channel 0~10V Dimmer
Accurate detection of presence and minor motion states
It is a mmWave radar sensor capable of detecting human presence, equipped with autonomous driving-level FMCW frequency-modulated radar chips, and utilizes Creatrol's exclusive algorithm to confirm human status by assessing breathing patterns. It has a built-in 0-32000Lux digital illuminance measurement chip to simultaneously detect ambient light. The detection range and sensitivity are independently and continuously adjustable.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ8m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Power Input: AC100~240V
Output: 2 Channel 0~10V Dimmer
