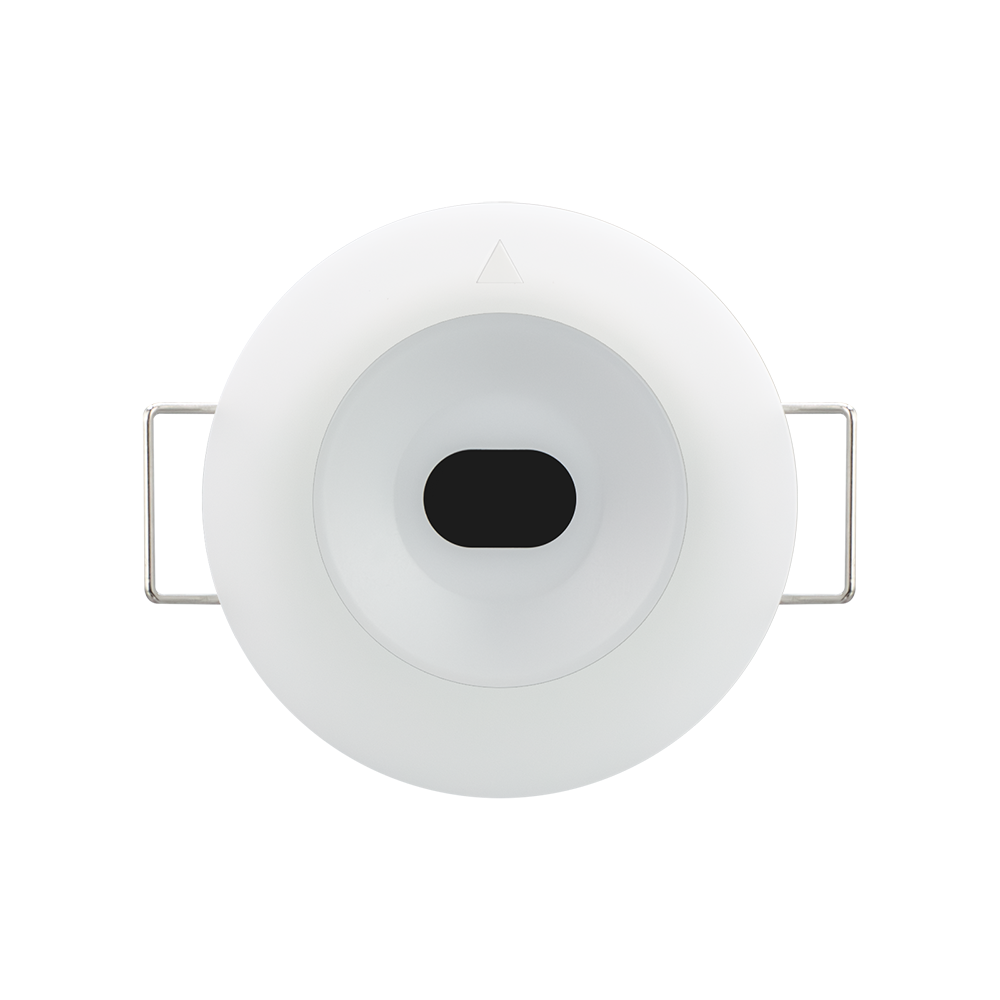

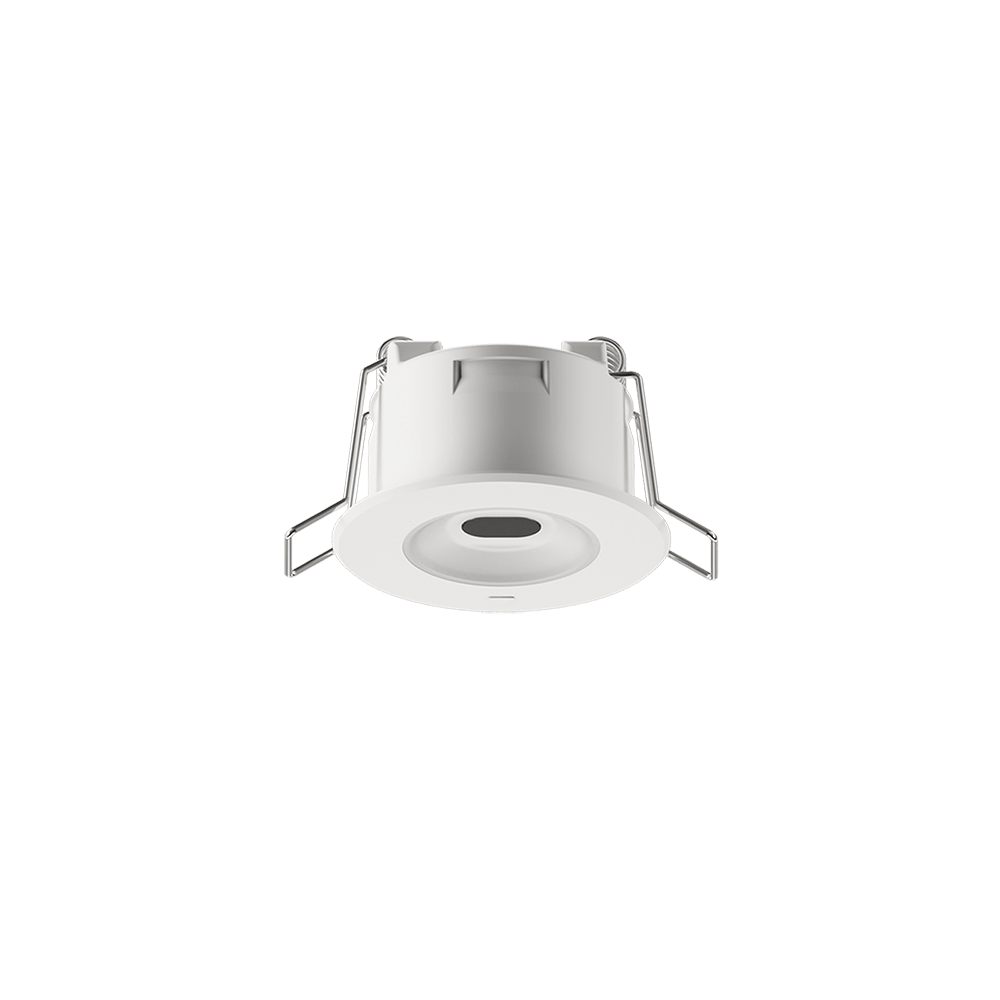

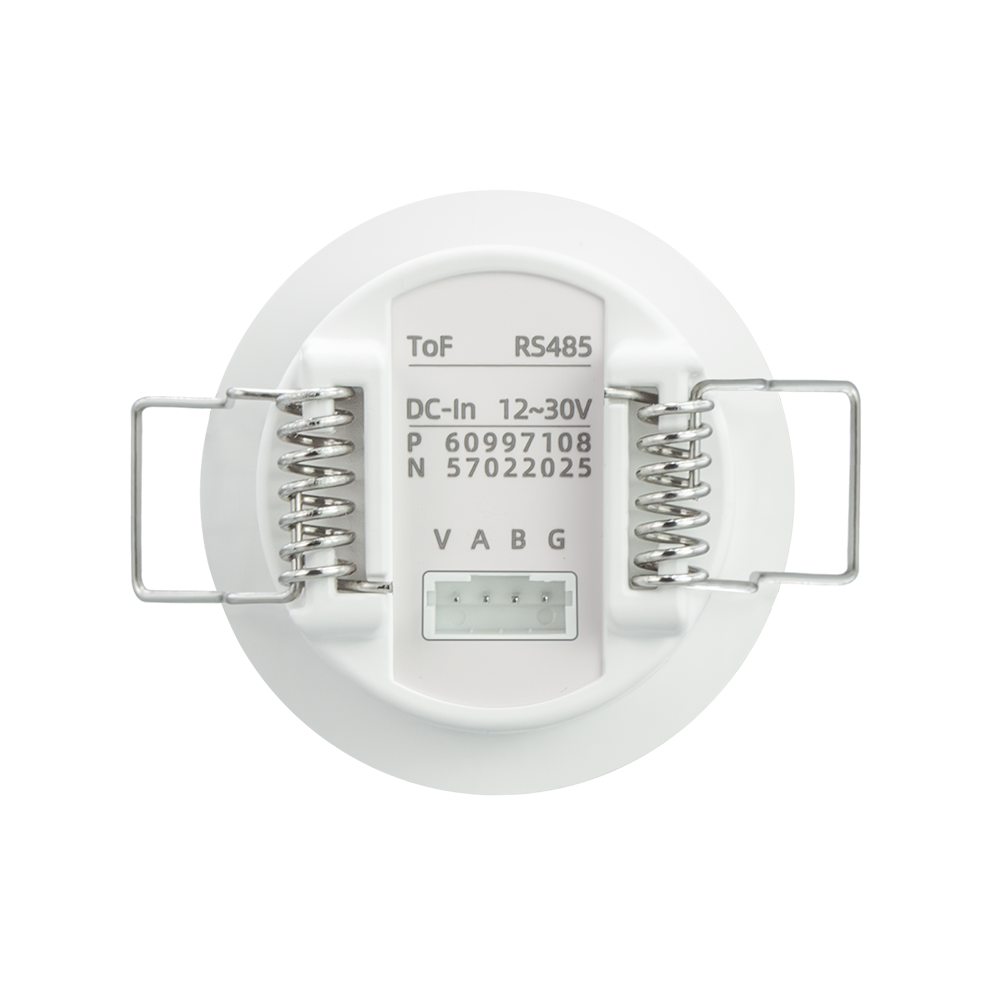

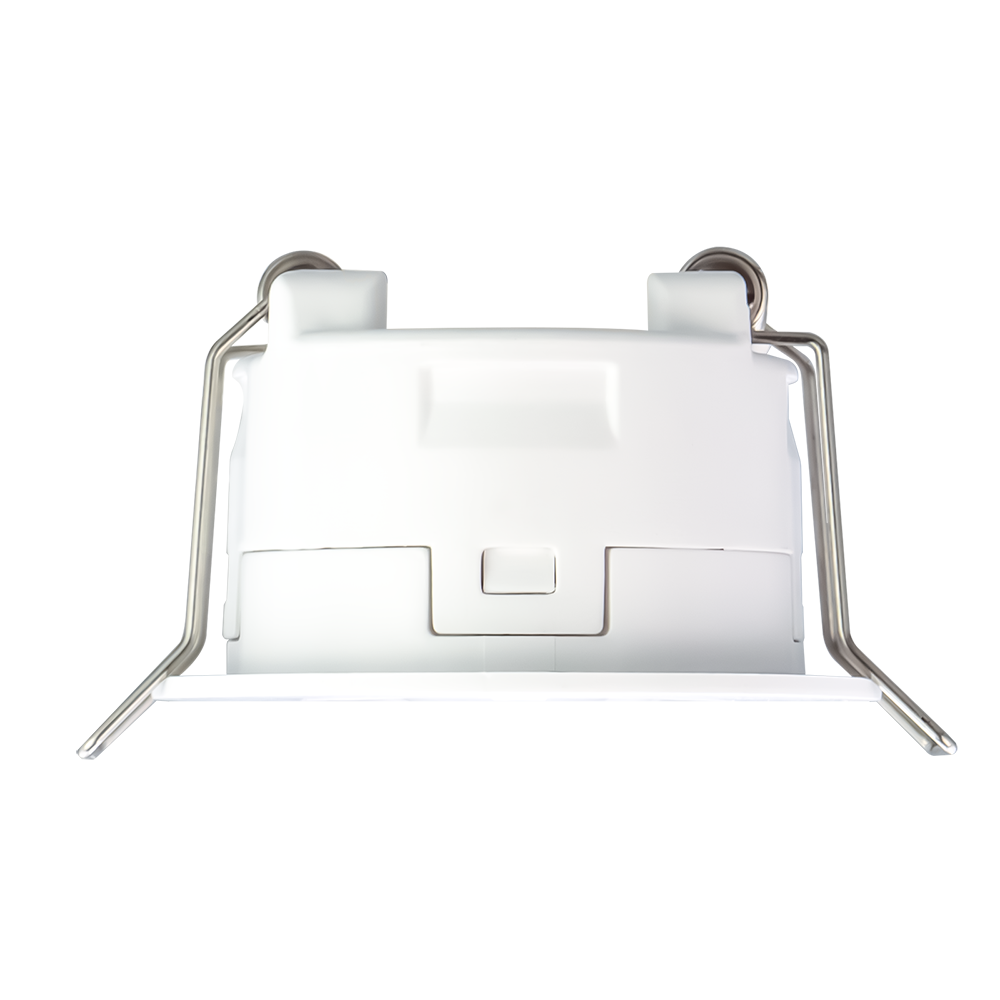

Mini ToF Ranging Occupancy Sensor (RS485)

No.Mini-ToF-485
SKU: 60.99.7108
Product Model: CTL-SEN-Mini/7108

Precise small range, occupancy detection, precise distance detection

A high-precision, miniaturized distance measurement sensor features accurate measurement from 0.1 to 3.2m, high anti-interference capability, and fast response characteristics.

Installation Height: 2~4m (Ceiling)
Detection Angle: 11 °
Detection Range: φ0.4m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Power Input: DC12~30V
Interface: RS485
4.9 (52 Reviews)
13850 Sold
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (38)
  • Mini ToF Ranging Occupancy Sensor (RS485)
  • Mini ToF Ranging Occupancy Sensor (RS485)
  • Mini ToF Ranging Occupancy Sensor (RS485)
  • Mini ToF Ranging Occupancy Sensor (RS485)
  • Mini ToF Ranging Occupancy Sensor (RS485)
  • Mini ToF Ranging Occupancy Sensor (RS485)
  • Mini ToF Ranging Occupancy Sensor (RS485)
  • Mini ToF Ranging Occupancy Sensor (RS485)
1/1
  • Mini ToF Ranging Occupancy Sensor (RS485)
  • Mini ToF Ranging Occupancy Sensor (RS485)
  • Mini ToF Ranging Occupancy Sensor (RS485)
  • Mini ToF Ranging Occupancy Sensor (RS485)

ToF Ranging

ToF Ranging
Occupancy Detection

Occupancy Detection

0.1-3.2m Distance

0.1-3.2m Distance
15° Ultra-Narrow Angle

15° Ultra-Narrow Angle
Lux Sensing

Lux Sensing
  • Description
  • Features
  • Resources
  • Accessories

      Precise Narrow-Angle Ranging Capability

Using Time of Flight (ToF) technology, it achieves narrow-angle detection at 11°, allowing for accurate positioning detection within a small range. It also provides high-precision ranging functions, accurately detecting the distance between the target object and the sensor, offering high-precision depth information.

      Accurate Occupancy Detection

ToF sensors provide small angle precision ranging functions, suitable for occupancy detection, and can offer diverse and flexible trigger settings.

      Built-in Digital Illuminance Measurement Chip

This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human  presence and occupancy but also monitor the surrounding light intensity, providing data support for intelligent lighting control.

       Ultra Small Size

This sensor features a super small 35mm opening and a 25mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment.

      Multiple Installation Methods

It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods.

Designation Value
Detection Mode ToF
Time-of-flight sensor
Install Height 2.0 ~ 4.0 meters
Detection Angle  11°
Detection Range When the detection distance is set between 0.1 and 3.2meters，
When set to 2.0 meters, the range diameter is 0.4 meters
(Note that pure white and black color will reduce detection accuracy)
Detection Distance 0.1 ~ 3.2 meters
Illuminance Sensing 0 ~ 32000 Lux (Accuracy ± 4%）
Product Dimensions φ43mm * 35mm * 25mm
Cutout Dimensions φ35mm
Product Weight 18g
Power Input DC 12 ~ 30V (Power consumption < 0.5W)
Work Temperature Temperature -20 ~ 45 ℃ Humidity < 95%
Address Range 01 ~ 99 (Decimal)
Delay Time 1 ~ 3600 seconds
Type
 RS485
LED Indicator ① Receive the configuration command and flash for 3 seconds
② It is always on when someone is detected, and the brightness of the indicator light automatically adjusts with the ambient illumination
③ Can be set to off mode (does not light up when detecting someone)
Guides & Manuals
Spec Sheet: Mini-ToF-485                      PDF PDF下载

Accessories for Installation
Mini-65 Mini-Embedded Parts Mini-Extermnal
Max 65mm Opening
Remedial Ring

For Oversize Holes:
Secure Installation
 Embedded Parts
Frameless Installation

For Wall/Ceiling Pre-Install:
Flush & Invisible

 No Opening Required
Surface-Mounted Sleeve

For Magnetic Mount:
No Pre-embedding, Multi-surface


Mini-Bracket Mini-86-Panel Mini-90° Bracket
Compatible with External
Detection Surface Angle Adjustable


For Wall or Ceiling Installation (with Mini-Extermnal):
  1. Lock & Anti-Drop, 360° Precise Adjustment
86 Wall-Mounted Panel
Easy Installation

For Wall Mount (86-type Box/Opening Compatible)：
Solve Sensor Adhesion Instability & Aesthetic Issues
Surface Mounting 90° Bracket

For Wall/Ceiling
（with Mini-Extermnal）:
Easy Surface Mount + 90° Directional Support
Frequently Bought Together
more
Frequently Bought Together
