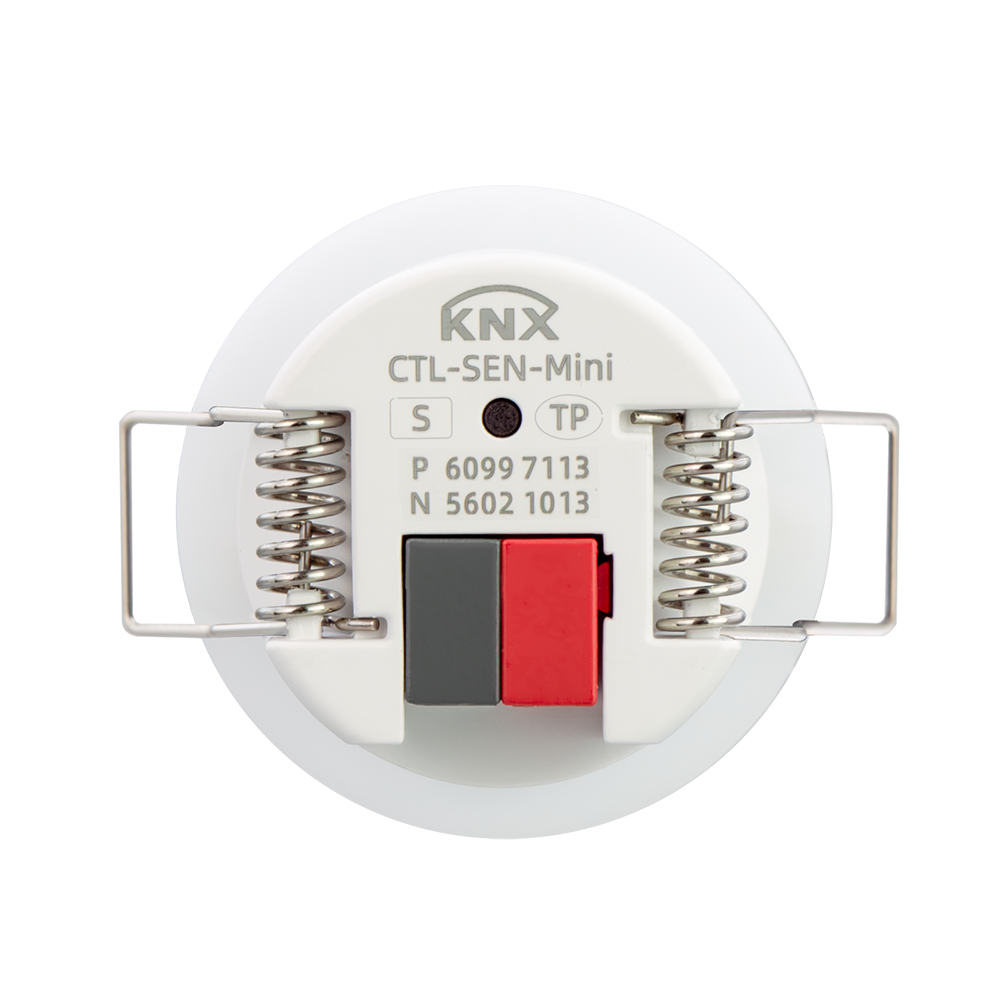

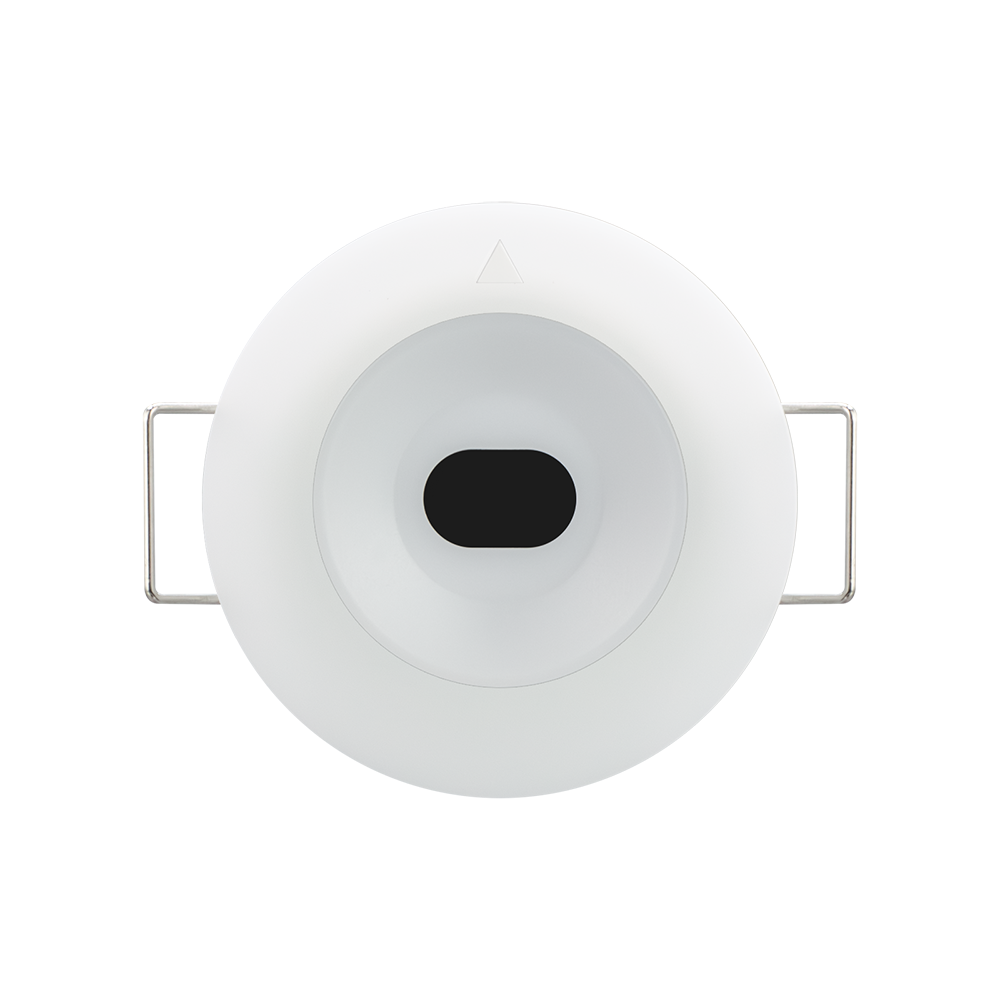

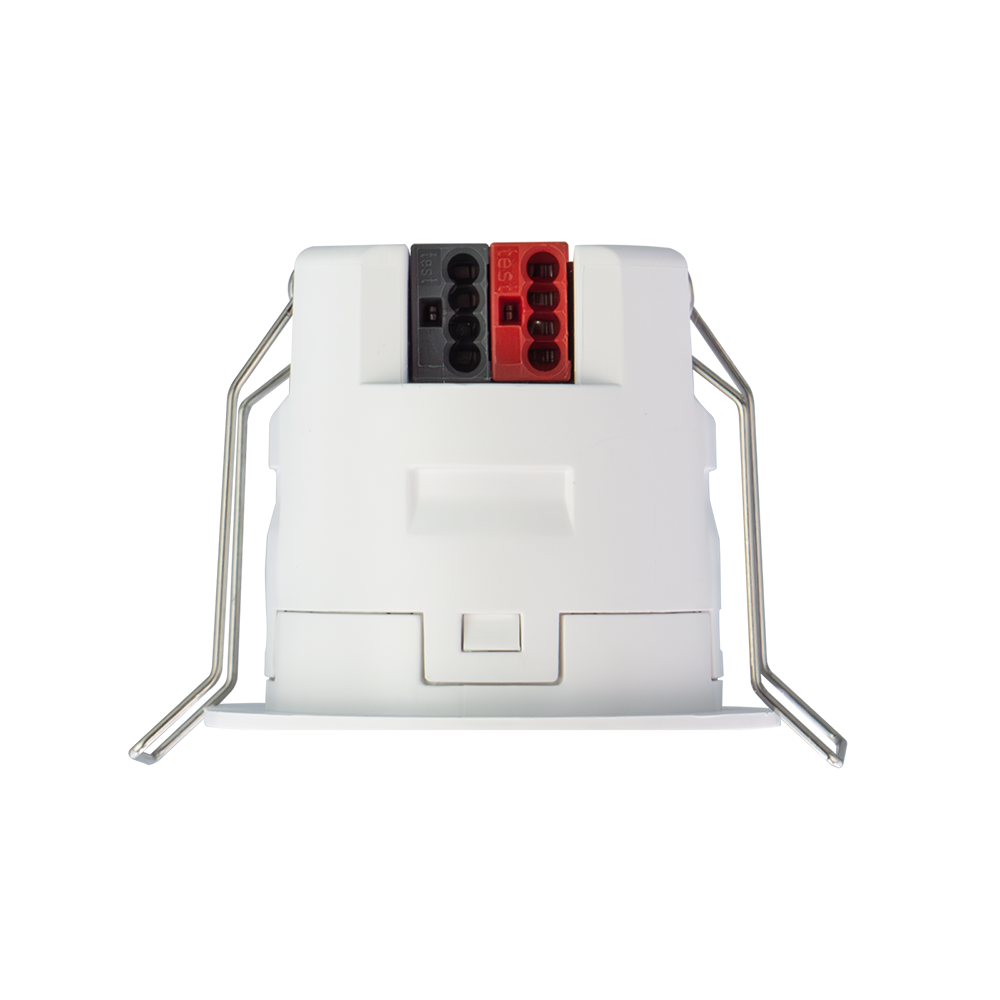

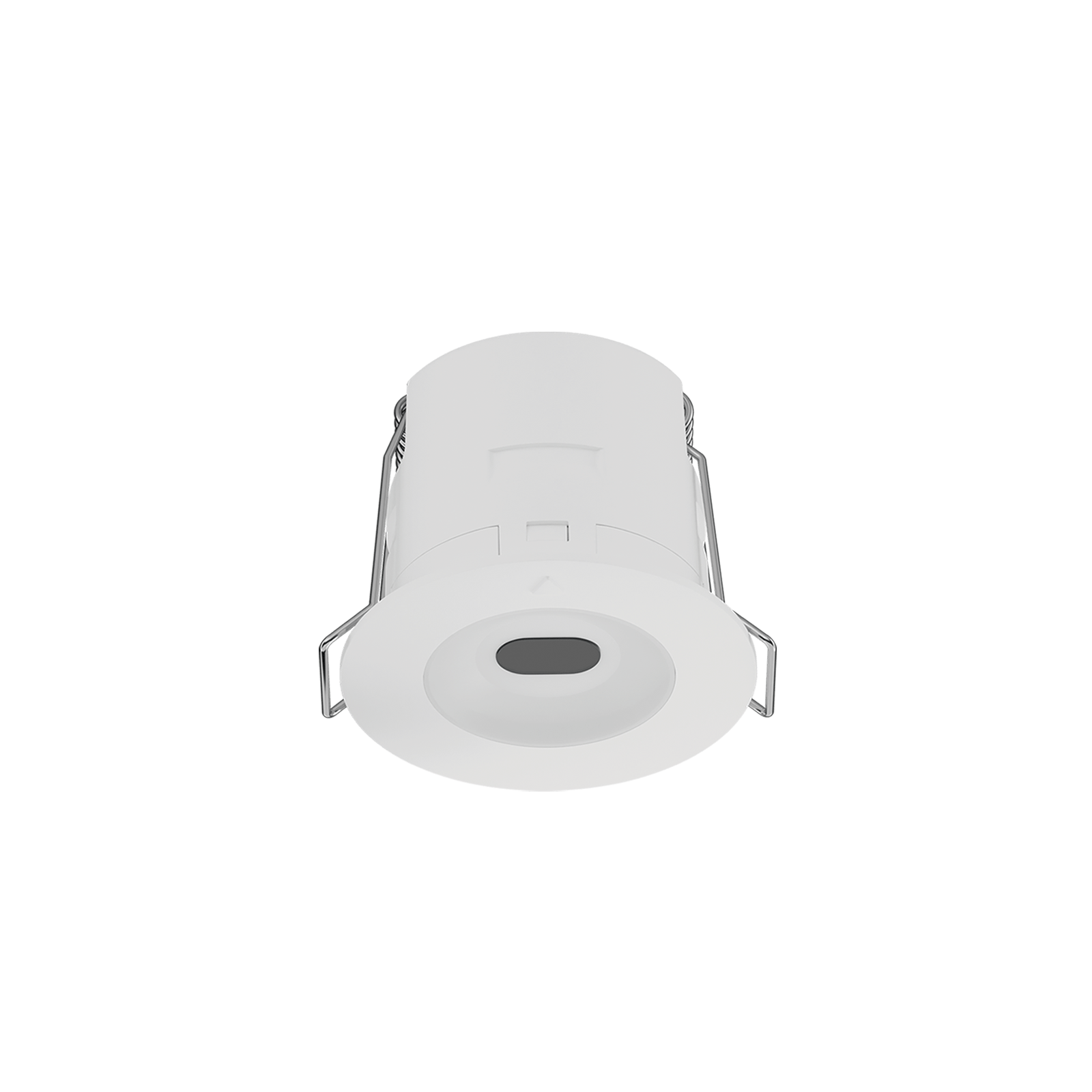

Mini ToF Ranging Occupancy Sensor (KNX)

No.Mini-ToF-KNX V2
SKU: 60.99.7113
Product Model: CTL-SEN-Mini/7113

Precise small range, occupancy detection, precise distance detection

A high-precision, miniaturized distance measurement sensor features accurate measurement from 0.1 to 3.2m, high anti-interference capability, and fast response characteristics.

Installation Height: 2~4m (Ceiling)
Detection Angle: 11 °
Detection Range: φ0.4m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Bus Input: KNX (21~30V)
Bus Current: 10mA
4.9 (97 Reviews)
17985 Sold
$***** $*****
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
Add to Favorites (195)
  • Mini ToF Ranging Occupancy Sensor (KNX)
  • Mini ToF Ranging Occupancy Sensor (KNX)
  • Mini ToF Ranging Occupancy Sensor (KNX)
  • Mini ToF Ranging Occupancy Sensor (KNX)
  • Mini ToF Ranging Occupancy Sensor (KNX)
  • Mini ToF Ranging Occupancy Sensor (KNX)
  • Mini ToF Ranging Occupancy Sensor (KNX)
  • Mini ToF Ranging Occupancy Sensor (KNX)
1/1
  • Mini ToF Ranging Occupancy Sensor (KNX)
  • Mini ToF Ranging Occupancy Sensor (KNX)
  • Mini ToF Ranging Occupancy Sensor (KNX)
  • Mini ToF Ranging Occupancy Sensor (KNX)

ToF Ranging

ToF Ranging
Occupancy Detection

Occupancy Detection

0.1-3.2m Distance

0.1-3.2m Distance
15° Ultra-Narrow Angle

15° Ultra-Narrow Angle
Lux Sensing

Lux Sensing
  • Description
  • Features
  • Resources
  • Accessories

      Precise Narrow-Angle Ranging Capability

Using Time of Flight (ToF) technology, it achieves narrow-angle detection at 11°, allowing for accurate positioning detection within a small range. It also provides high-precision ranging functions, accurately detecting the distance between the target object and the sensor, offering high-precision depth information.

      Accurate Occupancy Detection

ToF sensors provide small angle precision ranging functions, suitable for occupancy detection, and can offer diverse and flexible trigger settings.

      Seamlessly Interfacing with the KNX System

By integrating with the KNX protocol, this sensor can seamlessly integrate into the KNX system, enabling intelligent control of lighting devices, including smart switches, dimming, and full utilization of natural light. The flexibility and intelligent control capabilities of the sensor, combined with the integration of the KNX protocol, make it an ideal choice for smart lighting control, bringing efficient and energy-saving lighting management to various KNX projects.

      Built-in Digital Illuminance Measurement Chip

This product has a built-in 0-32000Lux digital illuminance measurement chip, capable of simultaneously detecting ambient light, meaning the sensor can not only detect human  presence and occupancy but also monitor the surrounding light intensity, providing data support for intelligent lighting control.

       Ultra Small Size

This sensor features a super small 35mm opening and a 35mm ultra-thin body design, making it smaller than 99% of sensors available on the market, facilitating installation and concealment.

      Multiple Installation Methods

It supports various installation accessories, allowing the sensor to adapt to different installation environments and needs, including embedded installation, wall mounting, ceiling expansion mounting, adjustable angle mounting, and surface mounting installation methods.

Designation Value
Detection Mode ToF                                                                                                                  Time-of-flight sensor
Install Height 2.0 ~ 4.0 meters
Detection Angle  11°
Detection Range When the detection distance is set between 0.1 and 3.2meters，
When set to 2.0 meters, the range diameter is 0.4 meters
(Note that pure white and black color will reduce detection accuracy)
Detection Distance 0.1 ~ 3.2 meters
Illuminance Sensing 0 ~ 32000 Lux (Accuracy ± 4%）
Product Dimensions φ43mm * 35mm * 35mm
Cutout Dimensions φ35mm
Product Weight 26g
Work Temperature Temperature -20 ~ 45 ℃ Humidity < 95%
Delay Time 1 ~ 3600 seconds
Working Power Supply
 DC 21 ~ 30V
Working Current
 10mA
LED Indicator ① Receive the configuration command and flash for 3 seconds
② It is always on when someone is detected, and the brightness of the indicator light automatically adjusts with the ambient illumination
③ Can be set to off mode (does not light up when detecting someone)
Guides & Manuals
Spec Sheet: Mini-ToF-KNX                      PDF PDF下载
