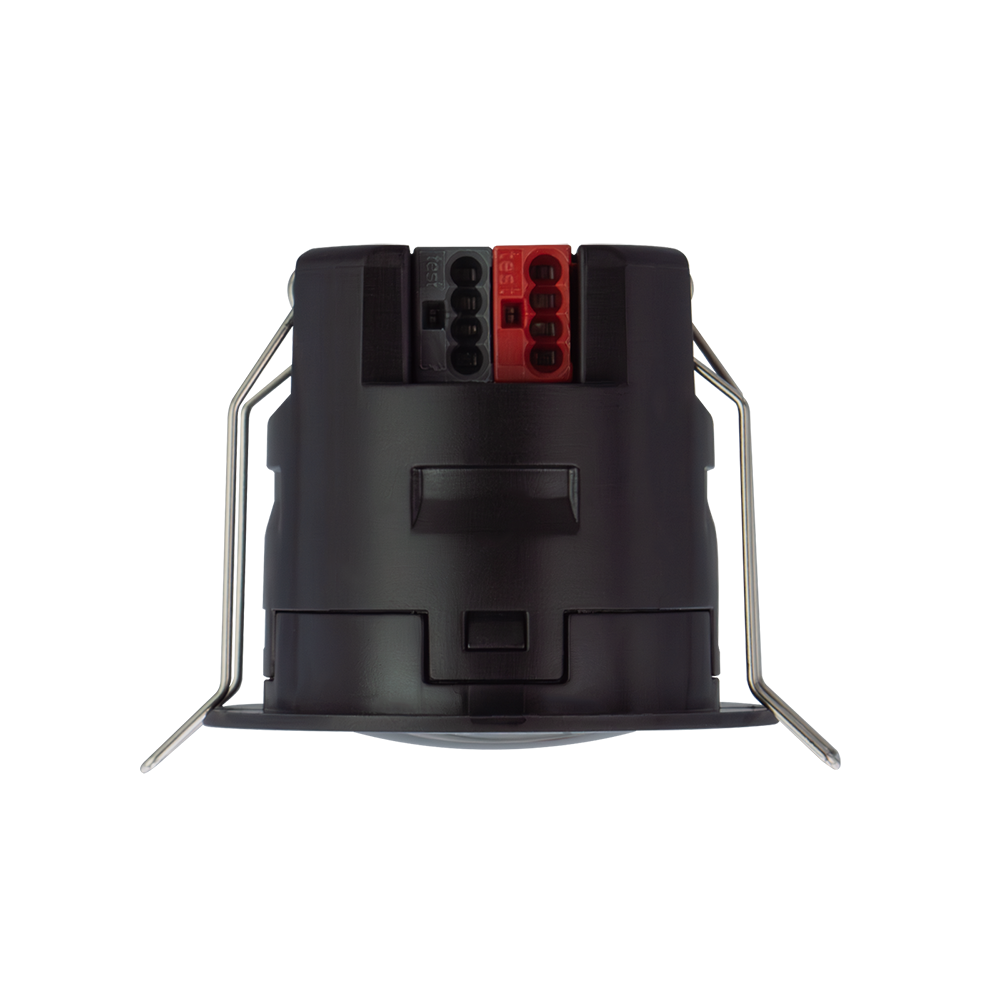

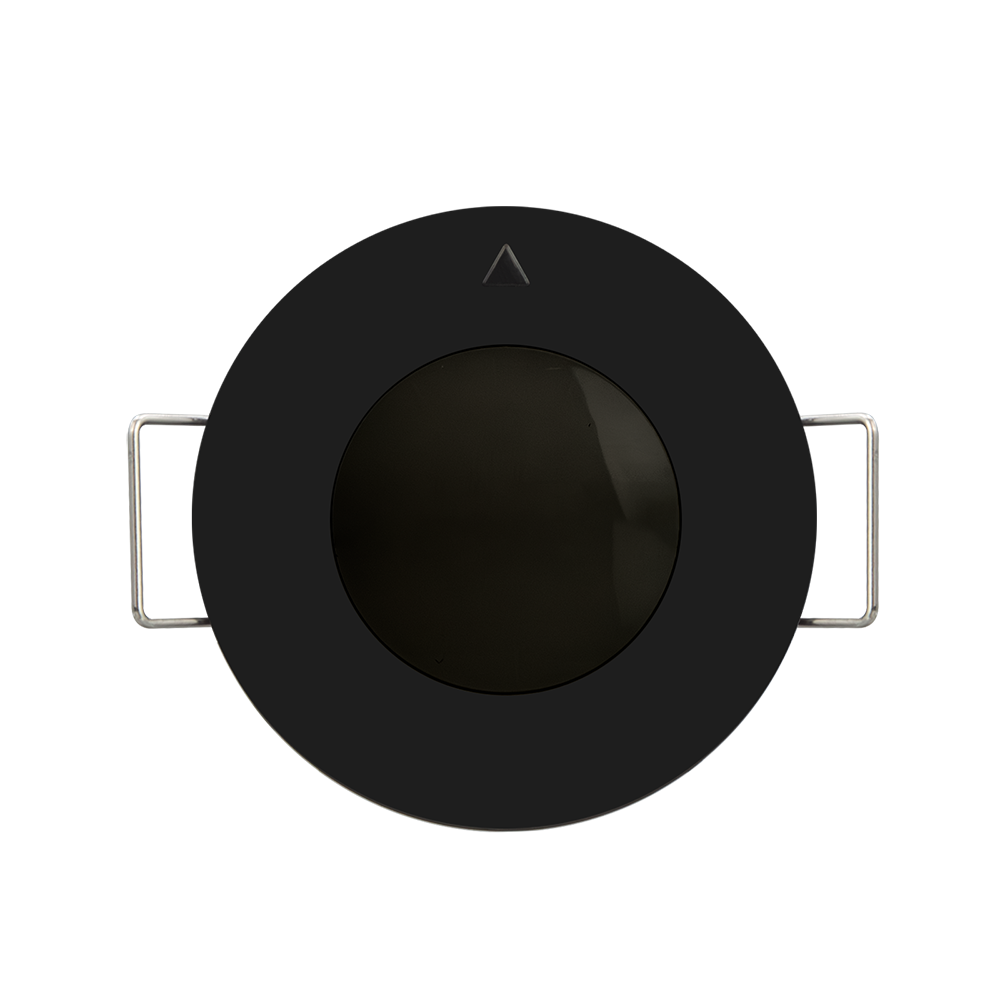

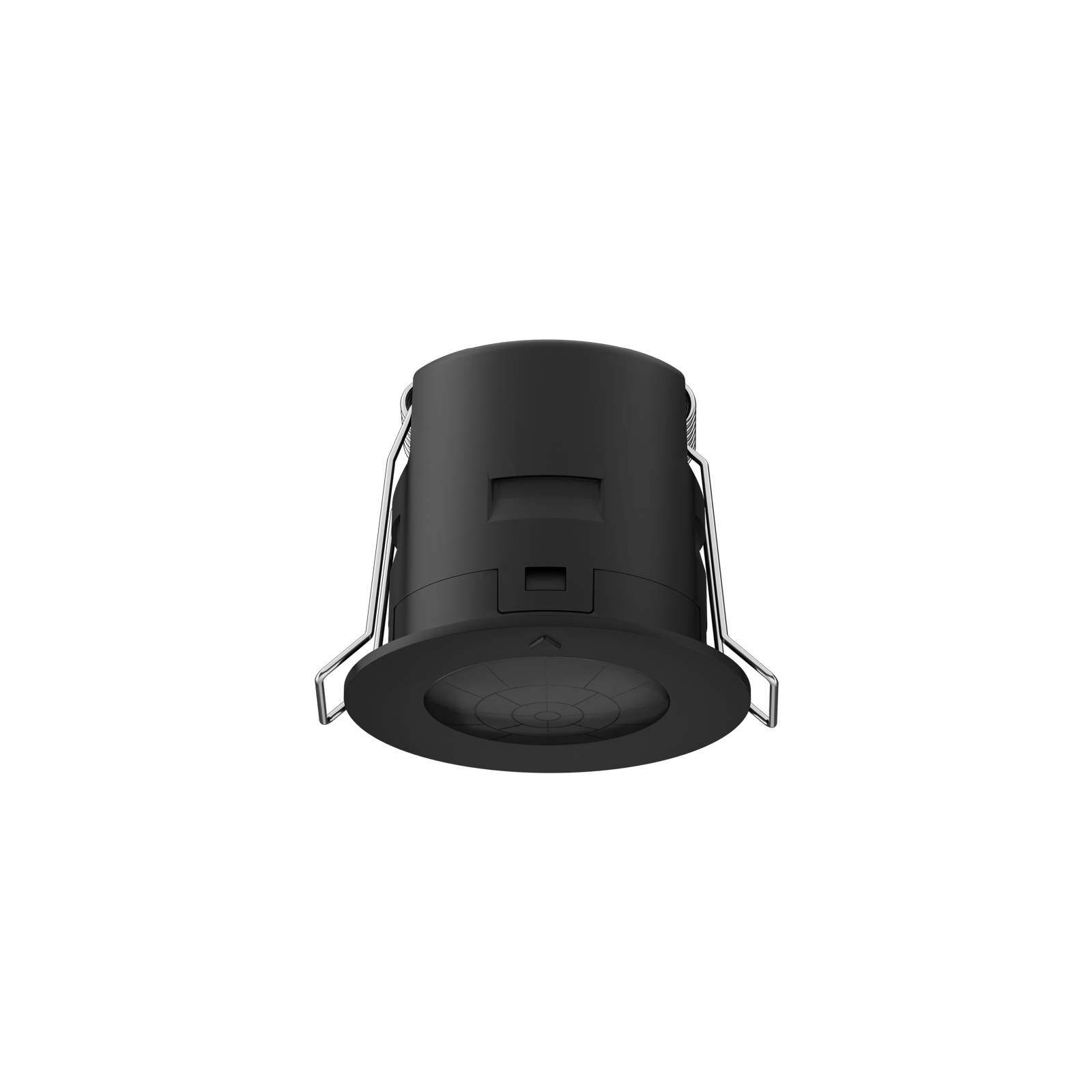

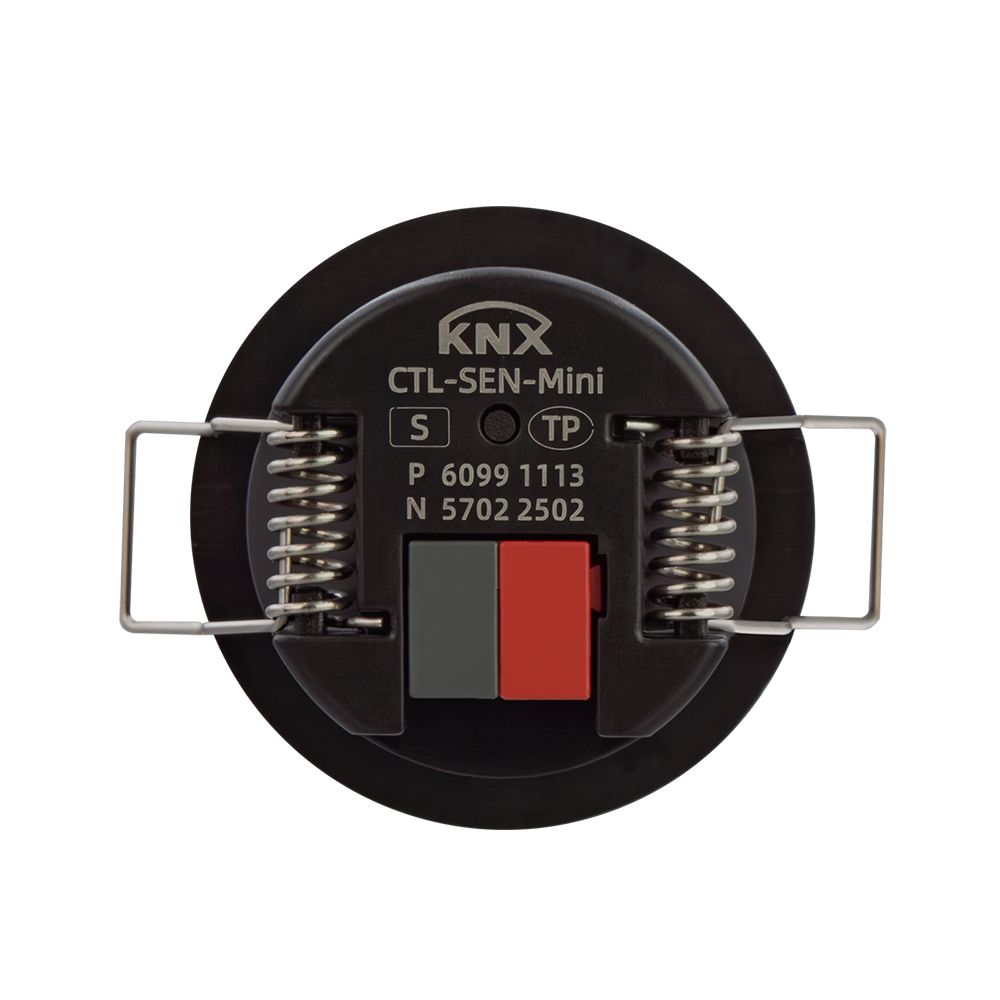

Mini PIR 360 Motion Sensor (KNX)
No.Mini-PIR-KNX/B
SKU: 60.9B.1113
Product Model: CTL-SEN-Mini/1113B
Detects human movement status
The sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing for dense coverage that detects human radiation motion. It has a built-in 0-32000 Lux digital illuminance counting chip, which can simultaneously detect ambient light.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ6m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Bus Input: KNX (21~30V)
Bus Current: 10mA
Detects human movement status
The sensor utilizes a Fresnel spherical lens and pyroelectric infrared sensing for dense coverage that detects human radiation motion. It has a built-in 0-32000 Lux digital illuminance counting chip, which can simultaneously detect ambient light.
Installation Height: 2~4m (Ceiling)
Detection Angle: 360°
Detection Range: φ6m (at 3m height)
Illuminance Sensor: 0~32000 Lux
Cut-out Size: φ35mm
Bus Input: KNX (21~30V)
Bus Current: 10mA
